MBFPL5-16CB https://www.bdiexpress.com/medias/INDASIFBXXXX-MBFPL-OPEN-BK-4BLT-300x300.jpg?context=bWFzdGVyfHJvb3R8NjU2OHxpbWFnZS9qcGVnfGFEa3hMMmhpTUM4eE1EYzJPREl5T0RnME16VTFNQzlKVGtSQlUwbEdRbGhZV0ZoZlRVSkdVRXhmVDFCRlRsOUNTMTgwUWt4VVh6TXdNSGd6TURBdWFuQm58NGExNTE3ODlkMjlkMDY5NGYzODExNzMwMTJmMDJhZjFhY2I5OWFiZTNiYzEzNTA3YWUxNDZhNGIwNmE2OGIzOQ
102823 Flange Block Bearings

AMI BEARINGS AMI BEARINGS

MBFPL5-16CB

Description

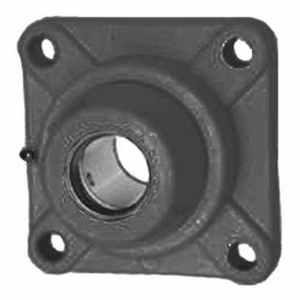

MBFPL5-16CB FLANGED BLOCK BEARING ; 1" ID 4-BOLT

Flange Block Bearing; 4 Bolt Square Flange Block; 1" Bore; 3.9" Bolt Circle Diameter; 2-3/4" Bolt Spacing; 1 Piece Solid; Set Screw; Thermoplastic; Ball Bearing; Relubricatable; Contact Seal

Part #

MBFPL5-16CB

BDI #
102823

Details

218.31 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 218.31 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Flange Block Bearings
Brand
AMI BEARINGS
Manufacturer Name
ASAHI BEARINGS
Minimum Buy Quantity
N/A
UNSPSC
31171501
Weight / Kilogram
0.354
EAN
0808250212309
Product Group - BDI
M06110
Number of Mounting Holes
4
Mounting Method
Set Screw
Housing Style
4 Bolt Square Flange Block
Rolling Element
Ball Bearing
Housing Material
Thermoplastic
Expansion / Non-expansion
Non-Expansion
Mounting Bolts
3/8 Inch
Relubricatable
Yes
Insert Part Number
MB5-16
Seals
Contact
Housing Configuration
1 Piece Solid
Pilot Configuration
No Pilot
Inch - Metric
Inch
Other Features
Single Row | Normal Duty | Black Housing | Open End Cap
Category - BDI
Flange Block
Harmonized Tariff Code
8483.20.40.40
Noun
Bearing
Keyword String
Flanged
Manufacturer URL
https://www.amibearings.com
Manufacturer Item Number
MBFPL5-16CB
Weight / LBS
0.75
Long Description
Flange Block Bearing; 4 Bolt Square Flange Block; 1" Bore; 3.9" Bolt Circle Diameter; 2-3/4" Bolt Spacing; 1 Piece Solid; Set Screw; Thermoplastic; Ball Bearing; Relubricatable; Contact Seal
Bolt Spacing
2.75 Inch | 69.85 Millimeter
Length Thru Bore
1.063 Inch | 27 Millimeter
Bore
1 Inch | 25.4 Millimeter
Nominal Bolt Circle Diameter Round
3.9 Inch | 99 Millimeter
Cartridge Pilot Diameter
0 Inch | 0 Millimeter
