MUCFBL205-16CW https://www.bdiexpress.com/medias/INDASIFBXXXX-UCFB-OPEN-WHT-3BLT-300x300.jpg?context=bWFzdGVyfHJvb3R8NTEwMnxpbWFnZS9qcGVnfGFHVTVMMmc0TXk4eE1EYzNNRGt4T0Rrek1qVXhNQzlKVGtSQlUwbEdRbGhZV0ZoZlZVTkdRbDlQVUVWT1gxZElWRjh6UWt4VVh6TXdNSGd6TURBdWFuQm58NDIxOWRiYzNhNWYxOTA4ZWU4MGU1NjM2ODE3MzRmZDM4YmU1Y2VmZmRlYmFkNmNmNTgyOTUwODcxNDBkZDg3Yw
103594 Flange Block Bearings

AMI BEARINGS AMI BEARINGS

MUCFBL205-16CW

Description

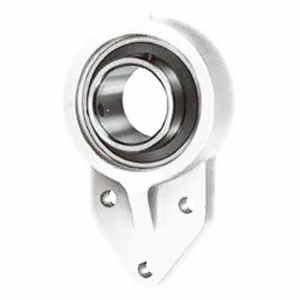

MUCFBL205-16CW FLANGED BLOCK BEARING ; 1" ID 3-BOLT

Flange Block Bearing; 3 Bolt Flange Bracket; 1" Bore; 1-1/8" Bolt Spacing; 1 Piece Solid; Set Screw; Thermoplastic; Ball Bearing; Relubricatable; Contact Seal

Part #

MUCFBL205-16CW

BDI #
103594

Details

239.43 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 239.43 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Flange Block Bearings
Brand
AMI BEARINGS
Manufacturer Name
ASAHI BEARINGS
Minimum Buy Quantity
N/A
UNSPSC
31171501
Weight / Kilogram
0.318
EAN
0808250316571
Product Group - BDI
M06110
Number of Mounting Holes
3
Mounting Method
Set Screw
Housing Style
3 Bolt Flange Bracket
Rolling Element
Ball Bearing
Housing Material
Thermoplastic
Expansion / Non-expansion
Non-Expansion
Mounting Bolts
3/8 Inch
Relubricatable
Yes
Insert Part Number
MUC205-16
Seals
Contact
Housing Configuration
1 Piece Solid
Pilot Configuration
No Pilot
Inch - Metric
Inch
Other Features
Single Row | Normal Duty | White Housing | Open Cover | Has Slinger
Category - BDI
Flange Block
Harmonized Tariff Code
8483.20.40.40
Noun
Bearing
Keyword String
Flanged
Manufacturer URL
https://www.amibearings.com
Weight / LBS
0.67
Long Description
Flange Block Bearing; 3 Bolt Flange Bracket; 1" Bore; 1-1/8" Bolt Spacing; 1 Piece Solid; Set Screw; Thermoplastic; Ball Bearing; Relubricatable; Contact Seal
Nominal Bolt Circle Diameter Round
0 Inch | 0 Millimeter
Bolt Spacing
1.125 Inch | 28.58 Millimeter
Length Thru Bore
1.339 Inch | 34 Millimeter
Bore
1 Inch | 25.4 Millimeter
Cartridge Pilot Diameter
0 Inch | 0 Millimeter
