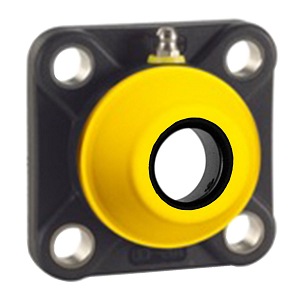

UCFQ204-20M-SS-OEC https://www.bdiexpress.com/medias/INDVGEFBXXXX-UCFQ-4BLT-SS-OEC-PL-300x300.jpg?context=bWFzdGVyfHJvb3R8MTg5MTd8aW1hZ2UvanBlZ3xhRGsyTDJoall5ODVOamMwTkRRek9URTFNamswTG1wd1p3fGRjOGI1YzZiMTA3MDBlYjBhODdjN2Q4NjEzMjcxYjMyMTU5YWI2ZjllZjVjMjNjMjE3MDM3OTllNTI4ZjcwMDU
340120 Flange Block Bearings

SYSTEM PLAST SYSTEM PLAST

UCFQ204-20M-SS-OEC

Description

UCFQ204-20M-SS-OEC FLANGE BEARING UNIT ; NON-RETURNABLE POLYAMIDE SS

Flange Block Bearing; 4 Bolt Square Flange Block; 20MM Bore; 90MM Bolt Circle Diameter; 63.5MM Bolt Spacing; 1 Piece Solid; Set Screw; Polyamide; Ball Bearing; Relubricatable; Single Lip Contact Seal

Part #

55204VR/SS-EC

BDI #
340120

Details

Request A Price CAD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price Request A Price BDIExpress
QTY

Inventory

Total: 2

Category
Flange Block Bearings
Brand
SYSTEM PLAST
Manufacturer Name
REGAL REXNORD https://www.regalrexnord.com
Minimum Buy Quantity
N/A
UNSPSC
31171501
Weight / Kilogram
0.231
EAN
0787405584075
Product Group - BDI
M06110
Number of Mounting Holes
4
Mounting Method
Set Screw
Housing Style
4 Bolt Square Flange Block
Rolling Element
Ball Bearing
Housing Material
Polyamide
Expansion / Non-expansion
Non-Expansion
Mounting Bolts
11 Millimeter
Relubricatable
Yes
Insert Part Number
UCSS204
Seals
Single Lip Contact
Housing Configuration
1 Piece Solid
Pilot Configuration
No Pilot
Inch - Metric
Metric
Other Features
Single Row | Open End Cap | Black Housing
Category - BDI
Flange Block
Harmonized Tariff Code
8483.20.40.40
Noun
Bearing
Keyword String
Flanged
Manufacturer URL
https://www.regalrexnord.com
Weight / LBS
0.51
Long Description
Flange Block Bearing; 4 Bolt Square Flange Block; 20MM Bore; 90MM Bolt Circle Diameter; 63.5MM Bolt Spacing; 1 Piece Solid; Set Screw; Polyamide; Ball Bearing; Relubricatable; Single Lip Contact Seal
Cartridge Pilot Diameter
0 Inch | 0 Millimeter
Bolt Spacing
2.5 Inch | 63.5 Millimeter
Length Thru Bore
1.016 Inch | 25.806 Millimeter
Nominal Bolt Circle Diameter Round
3.5 Inch | 90 Millimeter
Bore
0.787 Inch | 20 Millimeter
