Back to search results
111737 Flange Block Bearings

AMI BEARINGS AMI BEARINGS

UCFS312

Description

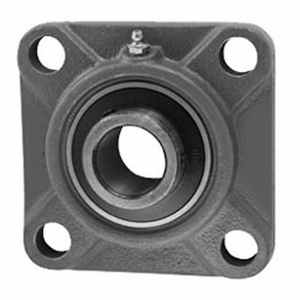

UCFS312 FLANGED BLOCK BEARING ; 60MM ID 4-BOLT

Flange Block Bearing; 4 Bolt Square Flange Cartridge; 60MM Bore; 212.1MM Bolt Circle Diameter; 150MM Bolt Spacing; 1 Piece Solid; Set Screw; Cast Iron; Ball Bearing; Relubricatable; Contact Seal

Part #

UCFS312

BDI #
111737

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Flange Block Bearings
Brand
AMI BEARINGS
Manufacturer Name
ASAHI BEARINGS
Minimum Buy Quantity
N/A
UNSPSC
31171501
Weight / Kilogram
7.27
EAN
0808250257102
Product Group - BDI
M06110
Number of Mounting Holes
4
Mounting Method
Set Screw
Housing Style
4 Bolt Square Flange Cartridge
Rolling Element
Ball Bearing
Housing Material
Cast Iron
Expansion / Non-expansion
Non-Expansion
Mounting Bolts
20 Millimeter
Relubricatable
Yes
Insert Part Number
UC312
Seals
Contact
Housing Configuration
1 Piece Solid
Pilot Configuration
With Pilot
Inch - Metric
Metric
Other Features
Single Row | Heavy Duty | Has Slinger
Category - BDI
Flange Block
Harmonized Tariff Code
8483.20.40.40
Noun
Bearing
Keyword String
Flanged
Manufacturer URL
https://www.amibearings.com
Manufacturer Item Number
UCFS312
Weight / LBS
16.5
Long Description
Flange Block Bearing; 4 Bolt Square Flange Cartridge; 60MM Bore; 212.1MM Bolt Circle Diameter; 150MM Bolt Spacing; 1 Piece Solid; Set Screw; Cast Iron; Ball Bearing; Relubricatable; Contact Seal
Bore
2.362 Inch | 60 Millimeter
Cartridge Pilot Diameter
6.299 Inch | 160 Millimeter
Bolt Spacing
5.906 Inch | 150 Millimeter
Nominal Bolt Circle Diameter Round
8.4 Inch | 212.1 Millimeter
Cartridge Pilot Depth
0.551 Inch | 14 Millimeter
Length Thru Bore
2.795 Inch | 71 Millimeter
