UEF206-20 https://www.bdiexpress.com/medias/INDASIFBXXXX-UEF-4BLT-300x300.jpg?context=bWFzdGVyfHJvb3R8ODA0OHxpbWFnZS9qcGVnfGFHUTNMMmczWWk4eE1EYzJPRGt6TkRFME1UazRNaTlKVGtSQlUwbEdRbGhZV0ZoZlZVVkdYelJDVEZSZk16QXdlRE13TUM1cWNHY3w0NjVlYzM0OTg4YWUxMmI5NTU0Zjk0ZmE2ODQxODEyZjZjMzhjNDZmOGE3MjdhZTQ3Y2RjZGJhOTgwNjNhNTI1
119267 Flange Block Bearings

AMI BEARINGS AMI BEARINGS

UEF206-20

Description

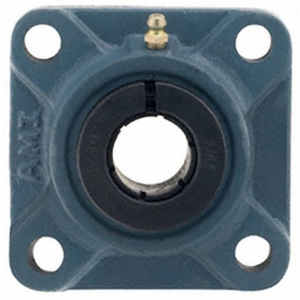

UEF206-20 FLANGED BLOCK BEARING ; 1-1/4" ID 4-BOLT

Flange Block Bearing; 4 Bolt Square Flange Block; 1-1/4" Bore; 4.7" Bolt Circle Diameter; 3-1/4" Bolt Spacing; 1 Piece Solid; Concentric Collar; Cast Iron; Ball Bearing; Relubricatable; Contact Seal

Part #

UEF206-20

BDI #
119267

Details

118.72 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 118.72 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Flange Block Bearings
Brand
AMI BEARINGS
Manufacturer Name
ASAHI BEARINGS
Minimum Buy Quantity
N/A
UNSPSC
31171501
Weight / Kilogram
1.17
EAN
0808250124657
Product Group - BDI
M06110
Number of Mounting Holes
4
Mounting Method
Concentric Collar
Housing Style
4 Bolt Square Flange Block
Rolling Element
Ball Bearing
Housing Material
Cast Iron
Expansion / Non-expansion
Non-Expansion
Mounting Bolts
3/8 Inch
Relubricatable
Yes
Insert Part Number
UE206-20
Seals
Contact
Housing Configuration
1 Piece Solid
Pilot Configuration
No Pilot
Inch - Metric
Inch
Other Features
Single Row | Normal Duty | Accu-Lok Collar Locking
Category - BDI
Flange Block
Harmonized Tariff Code
8483.20.40.40
Noun
Bearing
Keyword String
Flanged
Manufacturer URL
https://www.amibearings.com
Manufacturer Item Number
UEF206-20
Weight / LBS
2.64
Long Description
Flange Block Bearing; 4 Bolt Square Flange Block; 1-1/4" Bore; 4.7" Bolt Circle Diameter; 3-1/4" Bolt Spacing; 1 Piece Solid; Concentric Collar; Cast Iron; Ball Bearing; Relubricatable; Contact Seal
Nominal Bolt Circle Diameter Round
4.7 Inch | 120 Millimeter
Cartridge Pilot Diameter
0 Inch | 0 Millimeter
Length Thru Bore
1.567 Inch | 39.8 Millimeter
Bolt Spacing
3.25 Inch | 82.55 Millimeter
Bore
1.25 Inch | 31.75 Millimeter
