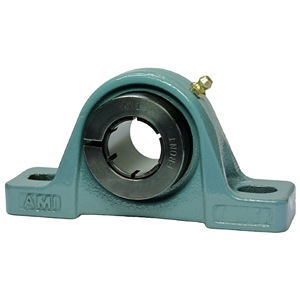

UEP207-20 https://www.bdiexpress.com/medias/INDASIPBXXXX-UEP-2BLT-300x300.jpg?context=bWFzdGVyfHJvb3R8MTM4MDZ8aW1hZ2UvanBlZ3xhRFppTDJnMU1pOHhNREk1TXpRNE1qazNPVE0xT0M5SlRrUkJVMGxRUWxoWVdGaGZWVVZRWHpKQ1RGUmZNekF3ZURNd01DNXFjR2N8MjQ1ZDA5YjFhMGIxZjdhNWFmM2I1NjhjNTc5MDUxNTBlZWIyOGQxM2MzYzJhZjhmOWRiMjYyMzY0ODMyMjI1OA
121055 Pillow Block Bearings

AMI BEARINGS AMI BEARINGS

UEP207-20

Description

UEP207-20 PILLOW BLOCK BEARING ; 1-1/4" BORE 1-7/8" BASE-CTR HGT 2 HOLE

Pillow Block Bearing; 2 Bolt Pillow Block; 1-1/4" Bore; 1-7/8" Base to Center Height; Concentric Collar Mount; Ball Bearing; 4-11/16" Minimum Bolt Spacing; 5-5/16" Maximum Bolt Spacing; Relubricatable; Cast Iron; Non-Expansion

Part #

UEP207-20

BDI #
121055

Details

154.75 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 154.75 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Pillow Block Bearings
Brand
AMI BEARINGS
Manufacturer Name
ASAHI BEARINGS
Minimum Buy Quantity
N/A
UNSPSC
31171511
Weight / Kilogram
1.95
EAN
0808250142514
Product Group - BDI
M06110
Number of Mounting Holes
2
Mounting Method
Concentric Collar
Housing Style
2 Bolt Pillow Block
Rolling Element
Ball Bearing
Housing Material
Cast Iron
Expansion / Non-expansion
Non-Expansion
Mounting Bolts
1/2 Inch
Relubricatable
Yes
Insert Part Number
UE207-20
Seals
Contact
Housing Configuration
1 Piece Solid
Inch - Metric
Inch
Other Features
Single Row | Accu-Lok Collar Locking
Category - BDI
Pillow Block
Harmonized Tariff Code
8483.20.40.40
Noun
Bearing
Keyword String
Pillow Block
Manufacturer URL
https://www.amibearings.com
Manufacturer Item Number
UEP207-20
Weight / LBS
3.86
Long Description
Pillow Block Bearing; 2 Bolt Pillow Block; 1-1/4" Bore; 1-7/8" Base to Center Height; Concentric Collar Mount; Ball Bearing; 4-11/16" Minimum Bolt Spacing; 5-5/16" Maximum Bolt Spacing; Relubricatable; Cast Iron; Non-Expansion
Nominal Bolt Center to Center
5 Inch | 127 Millimeter
Base to Center Height
1.875 Inch | 47.6 Millimeter
Bolt Spacing Minimum
4.688 Inch | 119.075Millimeter
Bore
1.25 Inch | 31.75 Millimeter
Length Thru Bore
1.728 Inch | 43.9 Millimeter
Bolt Spacing Maximum
5.313 Inch | 134.95Millimeter
