FM3526TU https://www.bdiexpress.com/medias/INDISOBUSHXX-FLG-SPLT-300x300.jpg?context=bWFzdGVyfHJvb3R8MTgxNjJ8aW1hZ2UvanBlZ3xhREpoTDJnek15ODVPRFV3T1RZM09UUTVNelF5TDBsT1JFbFRUMEpWVTBoWVdGOUdURWRmVTFCTVZGOHpNREI0TXpBd0xtcHdad3xjNzNlY2I4YjgyNGVlMTJmZDgxYTAwMjkyZTgxZTIxN2FmMDU2NzVmNGMyOWI3MDhhMGJhYzdjZWNmNzBhZDI5
Back to search results
526467 Sleeve Bearings

ISOSTATIC ISOSTATIC

FM3526TU

Description

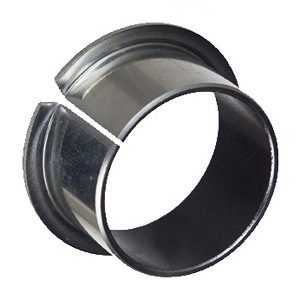

FM3526TU PLAIN BEARING ; 35MMX39MMX26MM STEEL PTFE

Sleeve Bearing; 35MM Nominal Bore; 39.025MM Nominal Outside Diameter; 26MM Length Thru Bore; Bushing With Flange Split Profile; Steel Backing | Sintered Bronze | PTFE Lead Overlay; TU Material; 47MM Flange Outside Diameter; 2MM Flange Thickness

Part #

FM3526TU

BDI #
526467

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Sleeve Bearings
Brand
ISOSTATIC
Manufacturer Name
ISOSTATIC INDUSTRIES
Minimum Buy Quantity
N/A
UNSPSC
31171515
Weight / Kilogram
0.05
EAN
0846802071332
Product Group - BDI
B04264
Profile
Bushing With Flange Split
Material Description
Steel Backing | Sintered Bronze | PTFE Lead Overlay
Material
TU
Other Features
Self-Lubricating
Inch - Metric
Metric
Category - BDI
Sleeve Bearings
Harmonized Tariff Code
8483.30.80.90
Noun
Bearing
Keyword String
Sleeve
Manufacturer URL
https://www.isostatic.com
Manufacturer Item Number
702034
Weight / LBS
0.1153
Long Description
Sleeve Bearing; 35MM Nominal Bore; 39.025MM Nominal Outside Diameter; 26MM Length Thru Bore; Bushing With Flange Split Profile; Steel Backing | Sintered Bronze | PTFE Lead Overlay; TU Material; 47MM Flange Outside Diameter; 2MM Flange Thickness
Length Thru Bore
1.024 Inch | 26 Millimeter
Flange Thickness
0.079 Inch | 2 Millimeter
Nominal Bore
1.378 Inch | 35 Millimeter
Nominal Outside Diameter
1.536 Inch | 39.025 Millimeter
Flange Outside Diameter
1.85 Inch | 47 Millimeter
