5370-169-224 https://www.bdiexpress.com/medias/INDWELBRAKEX-EL-EM20MB-CFACE-300x300.jpg?context=bWFzdGVyfHJvb3R8MjY1NDd8aW1hZ2UvanBlZ3xhRFU0TDJnMlpDOHhNRFkyT1Rrek56RTJORE14T0M5SlRrUlhSVXhDVWtGTFJWaGZSVXhmUlUweU1FMUNYME5HUVVORlh6TXdNSGd6TURBdWFuQm58OGFlNDg1OGUzNmU3Njg1N2Q4NzczMDVkNjQyMDJjMDgxNDFjOGZmOGE3ZDI5NmZmZWNhODRkM2Q0YzdhYWY5YQ
955281 Electric Clutches and Brakes

WARNER ELECTRIC WARNER ELECTRIC

5370-169-224

Description

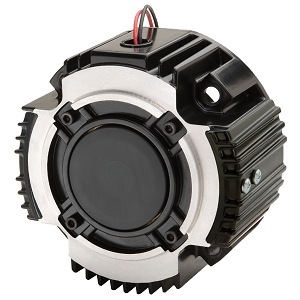

5370-169-224 BRAKE ASSEMBLY ; EM-180-20MB 90V GEN2

Electrical Braking System; Straight | Finished; 7/8" Bore; Hollow Bore Input; Not Applicable Output; C-Face | Shaft Mount; 90VDC Voltage; Bidirectional Rotation; Static Torque 30Lb-ft

Part #

30189288

BDI #
955281

Details

2312.16 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 2,312.16 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Electric Clutches and Brakes
Brand
WARNER ELECTRIC
Manufacturer Name
REGAL REXNORD
Minimum Buy Quantity
N/A
UNSPSC
26111500
Weight / Kilogram
4.53
EAN
0786582961341
Product Group - BDI
C02104
Product Name
Brake
Activation
Electrical
Bore Profile
Straight | Finished
Input Type
Hollow Bore
Output Type
Not Applicable
Mounting Method
C-Face | Shaft
Voltage Rating
90VDC
Direction of Rotation
Bidirectional
Number of Stop Collars
0
Torque
Static Torque 30Lb-ft
Product Type
Friction Facing
Motion Type
Stopping
Actuation/Return
Coil
Product Series
EM
Housing Style
Cylindrical
Shaft-Thru/End
End
Mounting Frame Profile
NEMA
Mounting Frame Size
182C | 143TC | 184C | 145TC
Power Off Status
Disengagement
Power Rating
21W
Resistance Ohm
392Ohm
Maximum RPM
3600
Lead Wire Position
External
Application
Auger Filler | Food Processing | Sheet Cutter | Food Handling
Inch - Metric
Inch
Other Features
Rugged | Finned Design | Single Arm | UL and CSA Certified
Category - BDI
Clutches and Brakes
Harmonized Tariff Code
8505.20.00.00
Noun
Braking System
Keyword String
Electrical
Manufacturer URL
https://www.warnerelectric.com
Weight / LBS
21.5
Long Description
Electrical Braking System; Straight | Finished; 7/8" Bore; Hollow Bore Input; Not Applicable Output; C-Face | Shaft Mount; 90VDC Voltage; Bidirectional Rotation; Static Torque 30Lb-ft
Bore
0.875 Inch | 22.225 Millimeter
