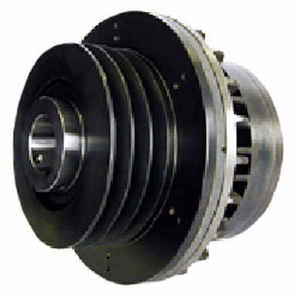

805251 https://www.bdiexpress.com/medias/INDHORCLUTCH-PNEU-L600-SHFT-SHVE-300x300.jpg?context=bWFzdGVyfHJvb3R8NTIwNTR8aW1hZ2UvanBlZ3xhR1F4TDJnM1lpODRPVFl3TlRZek1UZ3pOalEyTG1wd1p3fGQ3Zjk0ZDFjNTdmNmFhZWVlNjI2NjBkOTE5YzhmYzAwZGIxYWFkNmNkYzAzNTFjYzAxMTNhMDUzNDhlYWVkMzI
456832 Pneumatic Clutches and Brakes

NEXEN NEXEN

805251

Description

805251 FRICTION CLUTCH ; NON RETURNABLE

Clutch; Pneumatic Activation; Straight | Finished Bore; 1-1/8" Bore; Hollow Bore Input; Hollow Bore Output; Shaft Mount; Maximum Static Torque 222Lb-in

Part #

805251

BDI #
456832

Details

1335.12 CAD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 1,335.12 / each BDIExpress
QTY

Inventory

Total: 5

Category
Pneumatic Clutches and Brakes
Brand
NEXEN
Manufacturer Name
NEXEN GROUP INC WWW.NEXENGROUP.COM
Minimum Buy Quantity
N/A
UNSPSC
26111911
Weight / Kilogram
8.303
EAN
0662284156035
Product Group - BDI
C02104
Product Name
Clutch
Activation
Pneumatic
Bore Profile
Straight | Finished
Input Type
Hollow Bore
Output Type
Hollow Bore
Mounting Method
Shaft
Torque
Maximum Static Torque 222Lb-in
Product Type
Friction Disc
Motion Type
Inching | Jogging | Indexing
Actuation/Return
Air | Spring
Tradename
AIR CHAMP
Product Series
L-600
Housing Style
Cylindrical
Shaft-Thru/End
Thru
Drive Arrangement
Sheave Mount
Maximum RPM
3600
Pressure
80psi
Thermal Capacity
0.75HP
Inch - Metric
Inch
Other Features
Low Coefficient Clutch Facing | Black Oxide Finish | Open Design
Category - BDI
Clutches and Brakes
Harmonized Tariff Code
8483.60.40.40
Noun
Clutch
Keyword String
Pneumatic
Manufacturer URL
http://www.nexengroup.com
Manufacturer Item Number
805251
Weight / LBS
18.33
Long Description
Clutch; Pneumatic Activation; Straight | Finished Bore; 1-1/8" Bore; Hollow Bore Input; Hollow Bore Output; Shaft Mount; Maximum Static Torque 222Lb-in
Port Size
0.125 Inch | 3.175 Millimeter
Pilot Diameter
0 Inch | 0 Millimeter
Bore
1.125 Inch | 28.575 Millimeter
