17874037 Hydraulic and Pneumatic Valves

SMC SMC

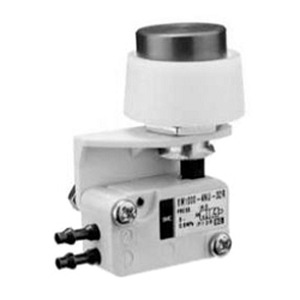

VM1000-4NU-32B

Description

VM1000-4NU-32B

Mechanical Valve; 4 MM Tubing OD Port; 3 Port | 3 Way; 2 Position; Pneumatic; Extended Pushbutton | Spring Return; 116 PSI; 23 To 140 Deg F; Plastic

Part #

VM1000-4NU-32B

BDI #
17874037

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141603
Weight / Kilogram
0.059
Product Group - BDI
F02352
Valve Type
Mechanical
Port Type
4 MM Tubing OD
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Extended Pushbutton | Spring Return
Voltage
Not Applicable
Media
Pneumatic
Maximum Pressure
116 PSI
Operating Pressure Range
0 To 116 PSI
Operating Temperature Range
23 To 140 Deg F
Body Material
Plastic
Inch - Metric
Metric
Other Features
Side Ported
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.80
Noun
Valve
Keyword String
Mechanical
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.1296
Long Description
Mechanical Valve; 4 MM Tubing OD Port; 3 Port | 3 Way; 2 Position; Pneumatic; Extended Pushbutton | Spring Return; 116 PSI; 23 To 140 Deg F; Plastic
Overall Length
1.63 Inch | 41.4 Millimeter
Overall Width
0.945 Inch | 24 Millimeter
Overall Height
1.827 Inch | 46.4 Millimeter
