321155 Miter and Bevel Gears

BROWNING BROWNING

YSB12F36-20X1

Description

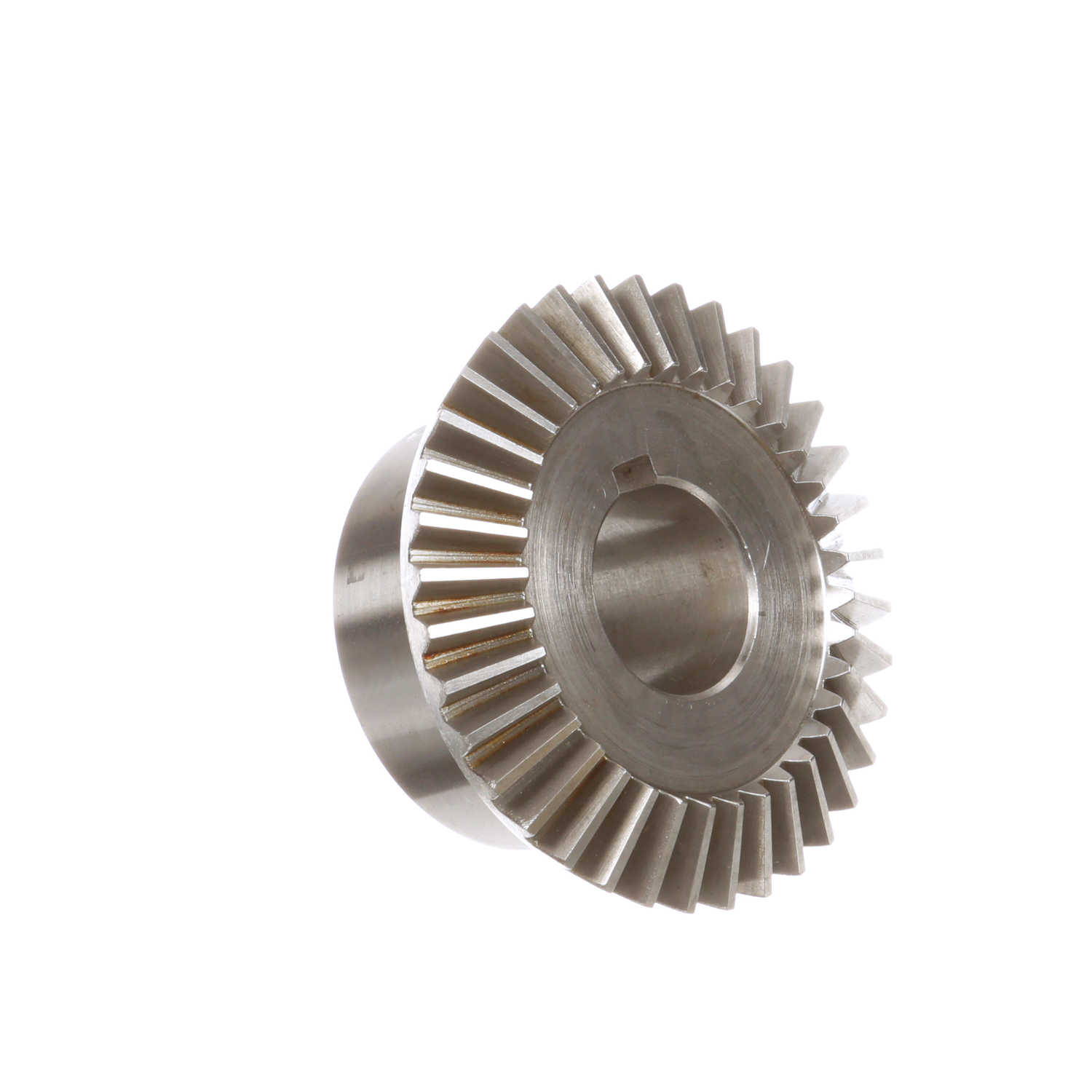

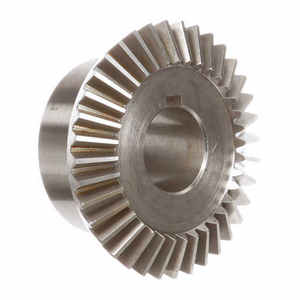

YSB12F36-20X1 BEVEL GEAR ; NON RETURNABLE

Bevel Gear; 1" Bore; 3" Pitch Dia; 12 DP; 0.53" Face Width; Finished Bore; 36 Teeth; 20 Degree Pressure Angle; No Bushing; No Minimum Plain Bore; 2-1/8" Hub Dia; Straight Tooth; Steel

Part #

1228600

BDI #
321155

Details

736.5 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 736.50 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Miter and Bevel Gears
Brand
BROWNING
Manufacturer Name
REGAL REXNORD https://www.regalrexnord.com
Minimum Buy Quantity
N/A
UNSPSC
31171708
Weight / Kilogram
0.603
EAN
0662289165315
Product Group - BDI
M02182
Pitch
12 DP
Mounting Method
Finished Bore
Number of Teeth
36
Pressure Angle
20 Degree
Bushing Size if bushed
No Bushing
Minimum Plain Bore
No
Max Bore
0
Gear Style
Bevel Gear
Tooth Profile
Straight Tooth
Spiral Angle
Not Applicable
Material
Steel
Direction
Not Applicable
Hardened Teeth
No
Inch - Metric
Inch
Other Features
Unhardened Overall | 2:1 Ratio | Coniflex Tooth Form | With Keyway and Set Screw
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Internal Number
1228600
Long Description
Bevel Gear; 1" Bore; 3" Pitch Dia; 12 DP; 0.53" Face Width; Finished Bore; 36 Teeth; 20 Degree Pressure Angle; No Bushing; No Minimum Plain Bore; 2-1/8" Hub Dia; Straight Tooth; Steel
Hub Diameter
2.125 Inch | 53.975 Millimeter
Pitch Diameter
3 Inch | 76.2 Millimeter
Face Width
0.53 Inch | 13.462 Millimeter
Bore
1 Inch | 25.4 Millimeter
