18109260 Parallel Shafts

FALK FALK

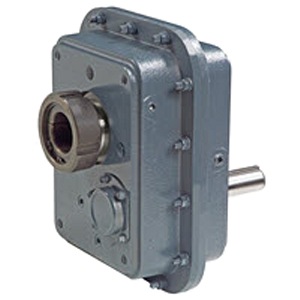

5207JR25A SHAFT MOUNT BU-2.438

Description

5207JR25A SHFT MNT BU-2.438 GEAR DRIVE ; 0794982 NON RETURNABLE

Speed Reducer; QUADRIVE; Parallel; 25:1 Ratio; Not Applicable Frame; Shaft Input Type; Bushed Output Type; 70 Output RPM; Direct Mounted; Helical

Part #

5207JR25A SHAFT MOUNT BU-2.438

BDI #
18109260

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Parallel Shafts
Brand
FALK
Manufacturer Name
REGAL REXNORD https://www.regalrexnord.com
Minimum Buy Quantity
N/A
UNSPSC
26111538
Weight / Kilogram
86.18
EAN
0782934260421
Product Group - BDI
M02282
Tradename
QUADRIVE
Reducer Type
Parallel
Nominal Ratio
25:1
Mounting Frame
Not Applicable
Input Type
Shaft
Output Type
Bushed
Motor Included
No
Nominal Max Input Rating
15HP
Nominal Max Output RPM
70
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
70
Gearing
Helical
Manufacturer's Series
5000
Base Included
No
Input Rating value plus um
15HP
Output Bushing Part Number
BU5207J
Housing Material And Finish
Cast Iron
Fan Cooling
No
Other Features
Double Reduction | With Bushing | Other Mount Torque Arm Mounted | Model A | Bushing Bore 2.438
Inch - Metric
Inch
Category - BDI
Reducers Parallel Shaft
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Helical
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Item Number
5207JR25A SHAFT MOUNT BU=2.438
Manufacturer Internal Number
0794982
Weight / LBS
190
Long Description
Speed Reducer; QUADRIVE; Parallel; 25:1 Ratio; Not Applicable Frame; Shaft Input Type; Bushed Output Type; 70 Output RPM; Direct Mounted; Helical
Bolt Hole Diameter
0.5 Inch | 12.7 Millimeter
Center Distance
4.9 Inch | 124.46 Millimeter
Overall Length
13.73 Inch | 348.742 Millimeter
Output Bore Range
1-3/8 To 2-7/16 Inch | 34.925 To 61.913 Millimeter
Input Shaft Length
3.5 Inch | 88.9 Millimeter
Input Shaft Diameter
1.5 Inch | 38.1 Millimeter
Overall Width
13.85 Inch | 351.79 Millimeter
Overall Height
19.43 Inch | 493.522 Millimeter
Nominal Center Distance
4.79 Inch | 121.666 Millimeter
