30A25LR14WP https://www.bdiexpress.com/medias/INDDODSPDRED-TGR2-RA-CPG-RL-BM-1-300x300.jpg?context=bWFzdGVyfHJvb3R8NjU3OHxpbWFnZS9qcGVnfGFHTmhMMmhqTnk4eE1EYzNNRE01TmpnM01qY3pOQzlKVGtSRVQwUlRVRVJTUlVSZlZFZFNNbDlTUVY5RFVFZGZVa3hmUWsxZk1WOHpNREI0TXpBd0xtcHdad3wwNDMyOWVhOTMzNDc1MWE4Mjc1ZWJmZTVkMDBjODE4OWFjNDY4NWU3ZGE3NGE3Y2FiZmUyOGEwY2Y4MTMyNjIz
Back to search results
274194 Right Angle Shafts

DODGE DODGE

30A25LR14WP

Description

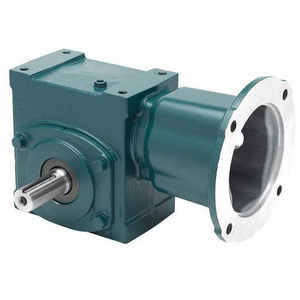

30A25LR14WP TIGEAR-2 REDUCER ; WITH WHITE PAINT

Speed Reducer; Right Angle; 25:1 Ratio; 143TC/145TC; C-Face Coupling Input Type; Right and Left Hand Output Type; Direct Mounted; Worm; 30 Series; 7/8" Input Shaft Diameter

Part #

30A25LR14WP

BDI #
274194

Details

3476.8 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 3,476.80 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Right Angle Shafts
Brand
DODGE
Manufacturer Name
RBC BEARINGS
Minimum Buy Quantity
N/A
UNSPSC
26111537
Weight / Kilogram
43.084
EAN
0782476224523
Product Group - BDI
M02282
Tradename
TIGEAR-2
Reducer Type
Right Angle
Nominal Ratio
25:1
Mounting Frame
143TC/145TC
Input Type
C-Face Coupling
Output Type
Right and Left Hand
Motor Included
No
Nominal Max Input Rating
3HP
Nominal Max Output RPM
70
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
70
Gearing
Worm
Manufacturer's Series
30
Mounting Position
Floor | Wall | Ceiling
Mounting Bolt Pattern footprint
Rectangular
Maximum Overhung load value And um
2300Lbs
Base Included
No
Input Rating value plus um
3.05HP
Housing Material And Finish
White Painted Class 30 Gray Iron
Output Torque
2284In-Lbs
Fan Cooling
No
Other Features
Single Reduction | Totally Enclosed Non-Vented Sealing
Inch - Metric
Inch
Category - BDI
Reducers Right Angle
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Worm
Manufacturer URL
https://dodgeindustrial.com
Manufacturer Item Number
TIGEAR-2 REDUCER W/ WHITE PAINT
Manufacturer Internal Number
30A25LR14W
Weight / LBS
95
Long Description
Speed Reducer; Right Angle; 25:1 Ratio; 143TC/145TC; C-Face Coupling Input Type; Right and Left Hand Output Type; Direct Mounted; Worm; 30 Series; 7/8" Input Shaft Diameter
Output Shaft Diameter
1.375 Inch | 34.925 Millimeter
Output Shaft Length
3.2 Inch | 81.28 Millimeter
Nominal Center Distance
3 Inch | 76.2 Millimeter
Base to Center of Input Shaft
6.25 Inch | 158.75 Millimeter
Overall Length
13.7 Inch | 347.98 Millimeter
Center Distance
3 Inch | 76.2 Millimeter
Overall Height
9.51 Inch | 241.554 Millimeter
Input Shaft Length
1.21 Inch | 30.734 Millimeter
Overall Width
13.5 Inch | 342.9 Millimeter
Bolt Hole Diameter
0.438 Inch | 11.125 Millimeter
Base to Center of Output Shaft
3.25 Inch | 82.55 Millimeter
Input Shaft Diameter
0.875 Inch | 22.225 Millimeter
