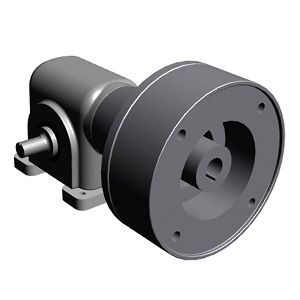

F0440400DBQX01 https://www.bdiexpress.com/medias/INDCNDSPDRED-RA-F-044-DBQ-X-01-300x300.jpg?context=bWFzdGVyfHJvb3R8MTM4NjJ8aW1hZ2UvanBlZ3xhREpsTDJnd05DOHhNREV4TURReE1ESXlOemMwTWk5SlRrUkRUa1JUVUVSU1JVUmZVa0ZmUmw4d05EUmZSRUpSWDFoZk1ERmZNekF3ZURNd01DNXFjR2N8Zjc3YjgyZjhlYjRhYWY2MDk3NTI1ODY5YjIzOGU0Mjk3ZmFjNjNiNzhmNjg4ZGQ2NmU1NGM2NjEyZGJjMTdiNA
Back to search results
24196234 Right Angle Shafts

CONE DRIVE CONE DRIVE

F0440400DBQX01

Description

F0440400DBQX01 WORM GEAR REDUCER ; NON-RETURNABLE SS DOUBLE REDUCTION

Speed Reducer; Right Angle; 400:1 Ratio; 182TC/184TC; C-Face Quill Input Type; Left Hand Output Type; Direct Mounted; Worm; F Series; 1.13" Input Shaft Diameter

Part #

F0440400DBQX01

BDI #
24196234

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Right Angle Shafts
Brand
CONE DRIVE
Manufacturer Name
TIMKEN CONEDRIVE.COM
Minimum Buy Quantity
N/A
UNSPSC
26111537
Weight / Kilogram
41.657
EAN
0766234549646
Product Group - BDI
M02282
Tradename
ACCUDRIVE
Reducer Type
Right Angle
Nominal Ratio
400:1
Mounting Frame
182TC/184TC
Input Type
C-Face Quill
Output Type
Left Hand
Motor Included
No
Nominal Max Input Rating
0.125HP
Nominal Max Output RPM
4.4
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
4.375
Gearing
Worm
Manufacturer's Series
F
Mounting Position
Universal
Mounting Bolt Pattern footprint
Rectangular
Maximum Overhung load value And um
750Lbs
Base Included
Yes
Input Rating value plus um
0.13HP
Housing Material And Finish
Stainless Steel
Output Torque
1120In-Lbs
Fan Cooling
No
Other Features
Double Reduction | Unit to Allow Fitting of Motor with Planetary | Standard Unit with Base Mounted Feet | 60 Percentage Efficiency | IP69K Ingress Protection | -22 To 200 Degree F Operating Temperature
Inch - Metric
Inch
Category - BDI
Reducers Right Angle
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Worm
Manufacturer URL
https://conedrive.com
Weight / LBS
28
Long Description
Speed Reducer; Right Angle; 400:1 Ratio; 182TC/184TC; C-Face Quill Input Type; Left Hand Output Type; Direct Mounted; Worm; F Series; 1.13" Input Shaft Diameter
Overall Length
14.1 Inch | 358.14 Millimeter
Base to Center of Input Shaft
4.5 Inch | 114.3 Millimeter
Center Distance
1.75 Inch | 44.45 Millimeter
Overall Width
7.15 Inch | 181.61 Millimeter
Overall Height
8.96 Inch | 227.584 Millimeter
Output Shaft Length
1.95 Inch | 49.53 Millimeter
Input Shaft Diameter
1.13 Inch | 28.702 Millimeter
Output Shaft Diameter
0.875 Inch | 22.225 Millimeter
Bolt Hole Diameter
0.34 Inch | 8.636 Millimeter
Base to Center of Output Shaft
2.75 Inch | 69.85 Millimeter
Nominal Center Distance
1.75 Inch | 44.45 Millimeter
