Back to search results
23629576 Screw Conveyor Hangers

MARTIN SPROCKET & GR MARTIN SPROCKET & GR

18CH2267

Description

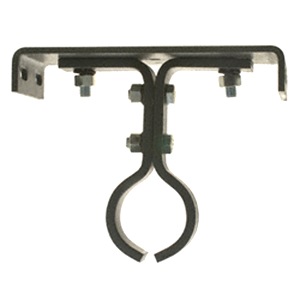

18CH2267 SCREW CNVR HANGER ; 18IN X 3-7/16IN 226

Conveyor Mount; Bracket Hanger; 3.438" Shaft Diameter; 12.125" Mounting Flange to Center of Bearing; 226 Series; 482.6" Length; 6" Width; No Bearing Included; Use CHB2267; 11/16 X 1-11/16 Inch Mounting Hole

Part #

18CH2267

BDI #
23629576

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Screw Conveyor Hangers
Brand
MARTIN SPROCKET & GR
Manufacturer Name
MARTIN SPROCKET & GEAR
Minimum Buy Quantity
N/A
UNSPSC
24101730
Weight / Kilogram
0
Product Group - BDI
M00136
Product Name
Hanger
Product Type
Bracket
Series
226
Bearing Included Yes/No
No
Bearing Number
CHB2267
Mounting Slot-Size
11/16 X 1-11/16 Inch
Other Features
18 Inch Conveyor Diameter | Friction Type Bearing | Flush Mounted Inside the Trough
Inch - Metric
Inch
Category - BDI
Conveyor Components Hangers
Harmonized Tariff Code
8431.39.00.10
Noun
Mount
Keyword String
Conveyor
Manufacturer URL
https://www.martinsprocket.com
Weight / LBS
49
Long Description
Conveyor Mount; Bracket Hanger; 3.438" Shaft Diameter; 12.125" Mounting Flange to Center of Bearing; 226 Series; 482.6" Length; 6" Width; No Bearing Included; Use CHB2267; 11/16 X 1-11/16 Inch Mounting Hole
Shaft Diameter
3.438 Inch | 87.325 Millimeter
Mounting Flange to Center of Bearing
12.125 Inch | 307.975 Millimeter
Width
6 Inch | 152.4 Millimeter
Length
19 Inch | 482.6 Millimeter
