QRS820A21P X 1-3/8 ALTD https://www.bdiexpress.com/medias/INDM-GSPKTXX-820SG-A-RND-P-300x300.jpg?context=bWFzdGVyfHJvb3R8MjA3MTd8aW1hZ2UvanBlZ3xhRFJpTDJneVlTOHhNRFF6TWpFNE16ZzJNVEkzT0M5SlRrUk5MVWRUVUV0VVdGaGZPREl3VTBkZlFWOVNUa1JmVUY4ek1EQjRNekF3TG1wd1p3fDBjMmU3ZTY2NThmMmU3Zjg4MTUzNjEzMzU0ZWZmMzc2YTNmMmIwNTNlNWQxNTEzN2Y3NGMwNmJiMDBmNWViZWI
Back to search results
22540028 Table Top and Modular Sprockets

MARTIN SPROCKET & GR MARTIN SPROCKET & GR

QRS820A21P X 1-3/8 ALTD

Description

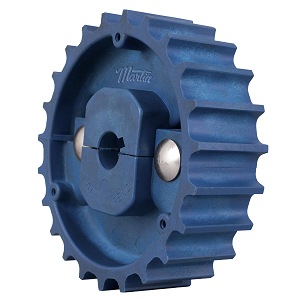

QRS820A21P X 1-3/8 ALTD CHAIN SPROCKET ; 21T

Conveying Chain Sprocket; 1-3/8" Bore; 815 | 820 | 831 | 4705 | 4706 | 4707 | 5705 | 5706 | SSB; 1-1/2" Pitch; 21 Teeth; 5.12" Outside Diameter; 5.089" Pitch Diameter; A-No Hub; Finished Bore; Round; Straight Running | Back Flexing; Thermoplastic

Part #

QRS820A21P X 1-3/8 ALTD

BDI #
22540028

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Table Top and Modular Sprockets
Brand
MARTIN SPROCKET & GR
Manufacturer Name
MARTIN SPROCKET & GEAR
Minimum Buy Quantity
N/A
UNSPSC
31171901
Weight / Kilogram
0
Product Group - BDI
M00332
Modular - Flat Top Size
815 | 820 | 831 | 4705 | 4706 | 4707 | 5705 | 5706 | SSB
Number of Teeth
21
Hub Type
A-No Hub
Mounting Method
Finished Bore
Bore Profile
Round
Modular - Flat Top Type
Straight Running | Back Flexing
Material
Thermoplastic
Grooved Yes or No
No
Split Yes or No
Yes
Keyway Yes/No
Yes
Inch - Metric
Inch
Other Features
5/16-18 Standard Set Screw at 90 Deg
Category - BDI
Flat Top Sprockets
Harmonized Tariff Code
8483.90.10.50
Noun
Sprocket
Keyword String
Conveying Chain
Manufacturer URL
https://www.martinsprocket.com
Weight / LBS
4.25
Long Description
Conveying Chain Sprocket; 1-3/8" Bore; 815 | 820 | 831 | 4705 | 4706 | 4707 | 5705 | 5706 | SSB; 1-1/2" Pitch; 21 Teeth; 5.12" Outside Diameter; 5.089" Pitch Diameter; A-No Hub; Finished Bore; Round; Straight Running | Back Flexing; Thermoplastic
Outside Diameter
5.12 Inch | 130.048 Millimeter
Pitch
1.5 Inch | 38.1 Millimeter
Bore
1.375 Inch | 34.925 Millimeter
Pitch Diameter
5.089 Inch | 129.261 Millimeter
