20181835 Low Voltage DC Motors

LEESON LEESON

098382.00

Description

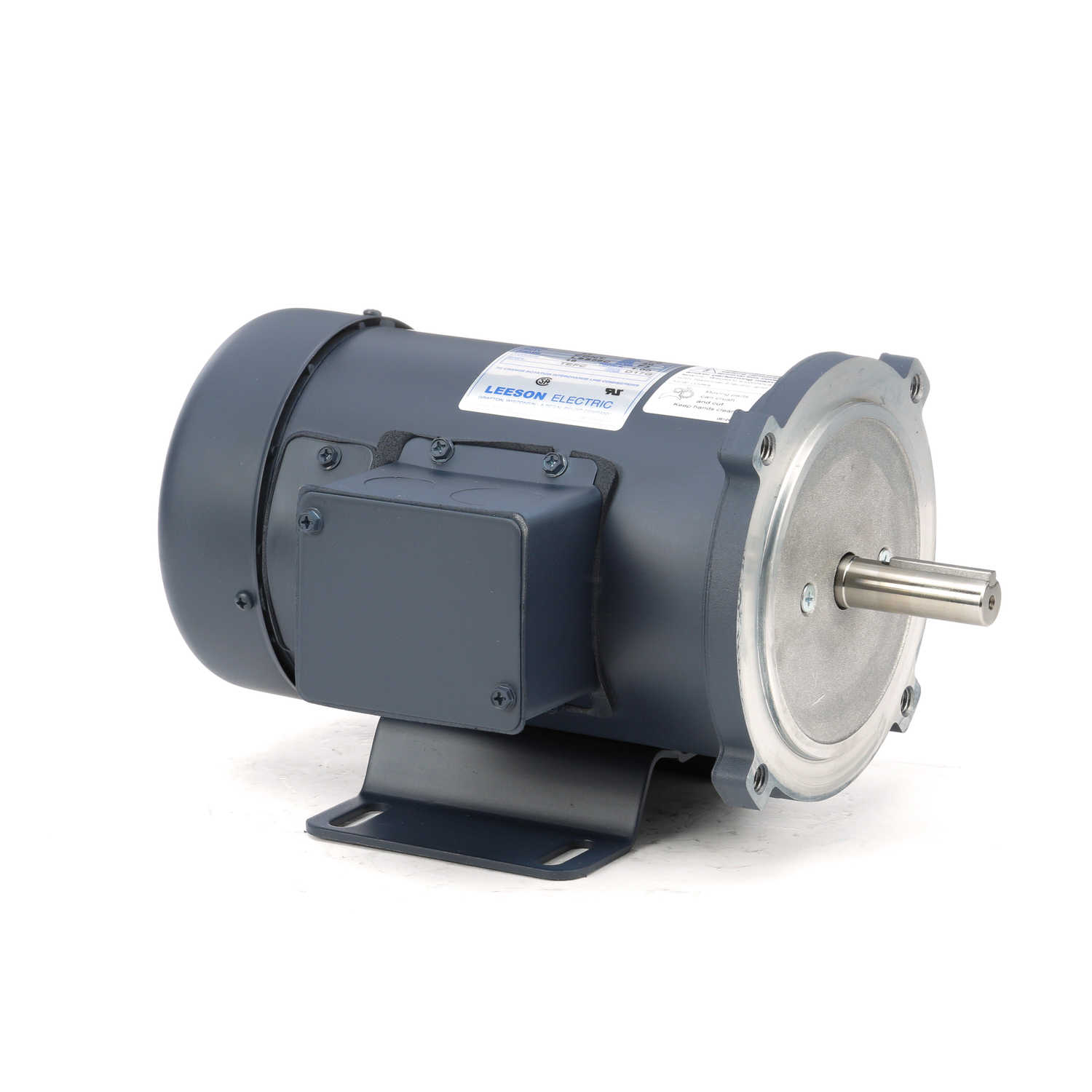

098382.00 LOW VOLTAGE DC MOTOR ; 1/2HP 1800RPM LSS56C 48V

DC Motor; Permanent Magnet; 1/2HP; LSS56C Frame Size; 1800 Sync RPM; 48 Voltage; DC; TEFC Enclosure; NEMA Frame Profile; C-Face | Rigid; Base; 5/8" Shaft Diameter; 3-1/2" Base to Center Height; 10.81" Overall Length; 76.5 Efficiency Full Load

Part #

098382.00

BDI #
20181835

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Low Voltage DC Motors
Brand
LEESON
Manufacturer Name
REGAL REXNORD https://www.regalrexnord.com
Minimum Buy Quantity
N/A
UNSPSC
26101208
Weight / Kilogram
9.53
EAN
0691720347423
Product Group - BDI
M04104
Horse Power
1/2HP
Frame Size
LSS56C
Sync RPM
1800
Voltage
48
Current
DC
Enclosure
TEFC
Frame Profile
NEMA
Mounting Method
C-Face | Rigid
Base
Yes
Efficiency Full Load
76.5
Inch - Metric
Inch
Other Features
Current Rating 11 Ampere | Low Voltage
Category - BDI
Low Voltage DC Motors
Harmonized Tariff Code
8501.33.40.60
Noun
Motor
Keyword String
Direct Current Permanent Magnet
Manufacturer URL
https://www.regalrexnord.com
Weight / LBS
21
Long Description
DC Motor; Permanent Magnet; 1/2HP; LSS56C Frame Size; 1800 Sync RPM; 48 Voltage; DC; TEFC Enclosure; NEMA Frame Profile; C-Face | Rigid; Base; 5/8" Shaft Diameter; 3-1/2" Base to Center Height; 10.81" Overall Length; 76.5 Efficiency Full Load
Overall Length
10.81 Inch | 274.574 Millimeter
Shaft Diameter
0.625 Inch | 15.875 Millimeter
Base to Center Height
3.5 Inch | 88.9 Millimeter
