APM933AT-B https://www.bdiexpress.com/medias/INDBOSMOTORX-DC-APM-AT-B-300x300.jpg?context=bWFzdGVyfHJvb3R8MTY5MTB8aW1hZ2UvanBlZ3xhREUyTDJnMVlpODVPRE0wTlRZMk1UZzVNRGcyTDBsT1JFSlBVMDFQVkU5U1dGOUVRMTlCVUUxZlFWUmZRbDh6TURCNE16QXdMbXB3Wnd8MGJkMDJlY2YyMDYwYzJhN2RkMzkyN2Y5MzlmZWYzZmI3M2ExMThkMTdjNGI5Y2Q0Y2UwNjIyZjcxNDNiMDcyOQ
Back to search results
164551 DC Motors

BOSTON GEAR BOSTON GEAR

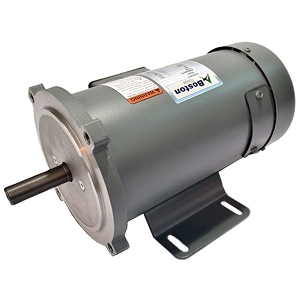

APM933AT-B

Description

APM933AT-B DC MOTOR ; 1/3HP 90VDC 56C

DC Motor; Permanent Magnet; 1/3HP; 42CYZ Frame Size; 1800 Sync RPM; 90 Voltage; DC; TENV Enclosure; NEMA Frame Profile; C-Face | Foot Mounted; Removable Base; 1/2" Shaft Diameter; 3-1/2" Base to Center Height; 11.38" Overall Length

Part #

19119

BDI #
164551

Details

2698.47 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 2,698.47 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
DC Motors
Brand
BOSTON GEAR
Manufacturer Name
REGAL REXNORD
Minimum Buy Quantity
N/A
UNSPSC
26101208
Weight / Kilogram
11.34
EAN
0781711191194
Product Group - BDI
M04104
Horse Power
1/3HP
Frame Size
42CYZ
Sync RPM
1800
Voltage
90
Current
DC
Enclosure
TENV
Frame Profile
NEMA
Mounting Method
C-Face | Foot Mounted
Base
Removable
Inch - Metric
Inch
Category - BDI
DC Motor
Harmonized Tariff Code
8501.33.40.60
Noun
Motor
Keyword String
Direct Current Permanent Magnet
Manufacturer URL
https://www.bostongear.com
Long Description
DC Motor; Permanent Magnet; 1/3HP; 42CYZ Frame Size; 1800 Sync RPM; 90 Voltage; DC; TENV Enclosure; NEMA Frame Profile; C-Face | Foot Mounted; Removable Base; 1/2" Shaft Diameter; 3-1/2" Base to Center Height; 11.38" Overall Length
Shaft Diameter
0.5 Inch | 12.7 Millimeter
Base to Center Height
3.5 Inch | 88.9 Millimeter
Overall Length
11.38 Inch | 289.052 Millimeter
