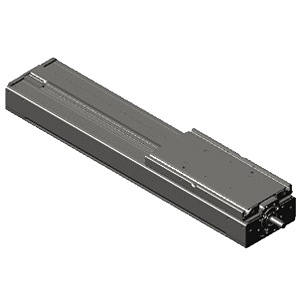

AXDL110SNU1610-D-450-680-A0-0000-G-A https://www.bdiexpress.com/medias/INDNTNRLASSY-AXDL110S-NU-D-G-A-300x300.jpg?context=bWFzdGVyfHJvb3R8MTE4MTl8aW1hZ2UvanBlZ3xhR1ExTDJoa1l5OHhNRFF5TnpRNE5qTTNNVGczTUM5SlRrUk9WRTVTVEVGVFUxbGZRVmhFVERFeE1GTmZUbFZmUkY5SFgwRmZNekF3ZURNd01DNXFjR2N8MWE4NWVhNzZlYzVlNmIyMzcxNDllY2NkMTUzMjg3ZTZjMDg0YmJkOTA2ZTEwNzUwNGEwZWQzYjgyM2EzNzBmYw
Back to search results
25176834 Profile Rail Assemblies

NTN NTN

AXDL110SNU1610-D-450-680-A0-0000-G-A

Description

NTN AXDL110SNU1610-D-450-680-A0-0000-G-A

Profile Rail Ball Nut Linear; Rail Assembly; Ball Nut Profile; Series AXDL; 614MM Rail Length; 110MM Rail Width; 680MM OA Length; 110MM OA Width; 65MM OA Height; 1 Carriages/Rail; Steel; Ball Screw; 450MM Stroke Length; 16MM Ball Screw Diameter

Part #

AXDL110SNU1610-D-450-680-A0-0000-G-A

BDI #
25176834

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Profile Rail Assemblies
Brand
NTN
Manufacturer Name
NTN-SNR https://www.ntn-snr.com/
Minimum Buy Quantity
N/A
UNSPSC
23153000
Weight / Kilogram
1
Product Group - BDI
L00124
Product Name
Rail Assembly
Product Type
Ball Nut Profile
Number of Carriages/Rail
1
Series
AXDL
Material
Steel
Ball Screw Yes/No
Yes
Inch - Metric
Metric
Other Features
Deflection Belt Drive | Two Parallel Linear Guide | Standard Table
Category - BDI
Profile Rail Assemblies
Noun
Assembly
Keyword 3
Linear
Keyword String
Profile Rail Ball Nut Linear
Manufacturer URL
https://www.ntnglobal.com
Long Description
Profile Rail Ball Nut Linear; Rail Assembly; Ball Nut Profile; Series AXDL; 614MM Rail Length; 110MM Rail Width; 680MM OA Length; 110MM OA Width; 65MM OA Height; 1 Carriages/Rail; Steel; Ball Screw; 450MM Stroke Length; 16MM Ball Screw Diameter
Stroke Length
17.717 Inch | 450 Millimeter
Rail Length
24.173 Inch | 614 Millimeter
Overall Width
4.331 Inch | 110 Millimeter
Overall Length
26.772 Inch | 680 Millimeter
Overall Height
2.559 Inch | 65 Millimeter
Ball Screw Diameter
0.63 Inch | 16 Millimeter
Rail Width
4.331 Inch | 110 Millimeter
