MFH-3-1/4-120-EX ; 541659 https://www.bdiexpress.com/medias/INDFESVALVEX-20210389-300x300.jpg?context=bWFzdGVyfHJvb3R8NzA3OXxpbWFnZS9qcGVnfGFEWmtMMmd3WXk4eE1EazNNVE16TlRjMU16YzFPQzlKVGtSR1JWTldRVXhXUlZoZk1qQXlNVEF6T0RsZk16QXdlRE13TUM1cWNHY3xiMTM1ZmE0ZDQ4ZDdkMWIxMjZiYzQzMzcwNTAyYTIyNDk4NTlhMjQ2NjM0YjZkYmMwNzA3Y2M2NTNiNjRjZWU5
20210389 Hydraulic and Pneumatic Valves

FESTO FESTO

MFH-3-1/4-120-EX ; 541659

Description

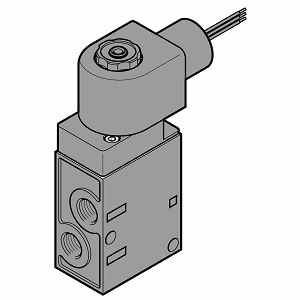

MFH-3-1/4-120-EX NR. 541659 ; AIR SOLENOID VALVE

Solenoid Valve; 1/4" G; 3 Port - 3 Way; 2 Position; 120/50-60 VAC; Pneumatic; Solenoid - Air Pilot - Manual/Spring Return; 116 PSI; Buna-N | Polyurethane; Aluminum

Part #

MFH-3-1/4-120-EX ; 541659

BDI #
20210389

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Request a quotation

Category
Hydraulic and Pneumatic Valves
Brand
FESTO
Manufacturer Name
FESTO
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0
EAN
0000040141605
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" G
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot - Manual | Spring Return
Voltage
120/50-60 VAC
Media
Pneumatic
Maximum Pressure
116 PSI
Operating Pressure Range
22 To 116 PSI
Operating Temperature Range
23 To 104 Deg F
Seal Type
Buna-N | Polyurethane
Body Material
Aluminum
Inch - Metric
Inch
Other Features
800 L/Min Flow Rate | Non-Reversible | Through Hole Mounting
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.festo.com
Manufacturer Internal Number
541659
Weight / LBS
0.93696
Long Description
Solenoid Valve; 1/4" G; 3 Port - 3 Way; 2 Position; 120/50-60 VAC; Pneumatic; Solenoid - Air Pilot - Manual/Spring Return; 116 PSI; Buna-N | Polyurethane; Aluminum
