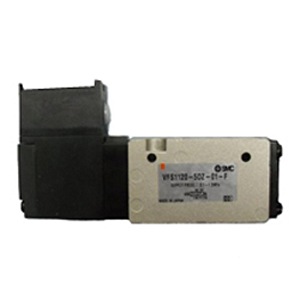

VFS1120-1DO-01F-Q https://www.bdiexpress.com/medias/INDSMCVALVEX-VFS1120-DO-300x300.jpg?context=bWFzdGVyfHJvb3R8MTU2ODR8aW1hZ2UvanBlZ3xhR1l3TDJnNE5TOHhNRFl3TmpJM09Ea3dNVGM1TUM5SlRrUlRUVU5XUVV4V1JWaGZWa1pUTVRFeU1GOUVUMTh6TURCNE16QXdMbXB3Wnd8OTliYjBmYmZhNzdmN2E4OTQ0ZDVlODM1ZTBmOTNmOGQxMGY4NGY1NGMwMmI4YmRiZmFjZjM3YjViM2ZkOWYyYw
17859433 Hydraulic and Pneumatic Valves

SMC SMC

VFS1120-1DO-01F-Q

Description

VFS1120-1DO-01F-Q ; VALVE SOL

Solenoid Valve; 1/8" G Port; 5 Port | 4 Way; 2 Position; 100/50-60 VAC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 145 PSI; 14 To 140 Deg F; Metal Seal; Aluminum

Part #

VFS1120-1DO-01F-Q

BDI #
17859433

Details

52307.0 HUF 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Ft 52,307 / each BDIExpress
QTY

Inventory

Total: Request a quotation

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.24
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/8" G
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
100/50-60 VAC
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
15 To 145 PSI
Operating Temperature Range
14 To 140 Deg F
Seal Type
Metal
Body Material
Aluminum
Inch - Metric
Inch
Other Features
0.38/0.4 Cv Factor | Air - Inert Gas Fluid | Body Ported | Plug In | Internal Pilot | DIN Terminal without DIN Connector | Flush Non Locking Push Manual Override | In/Out Position | Individual Pilot Exhaust
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.24039
Long Description
Solenoid Valve; 1/8" G Port; 5 Port | 4 Way; 2 Position; 100/50-60 VAC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 145 PSI; 14 To 140 Deg F; Metal Seal; Aluminum
Overall Height
1.358 Inch | 34.5 Millimeter
Overall Length
4.055 Inch | 103 Millimeter
Overall Width
0.906 Inch | 23 Millimeter
