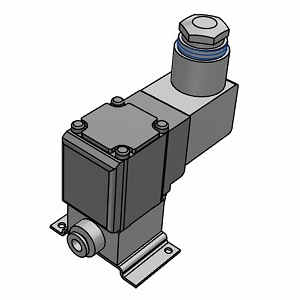

VX210HL https://www.bdiexpress.com/medias/INDSMCVALVEX-VX210HGC-DT-WOB-300x300.jpg?context=bWFzdGVyfHJvb3R8Njk5OHxpbWFnZS9qcGVnfGFHRmlMMmhqWWk4eE1Ea3hNVGMwTnpRM016UXpPQzlKVGtSVFRVTldRVXhXUlZoZlZsZ3lNVEJJUjBOZlJGUmZWMDlDWHpNd01IZ3pNREF1YW5CbnwwZTQzMjJmYjQ0ZGU4MGExNjg1NDdmZmJiMzc2YTNhMjQxN2Y0ZjIwMTFjZDgwMzA0OWIxMmQzNmU5YzE2NWUw
18197275 Hydraulic and Pneumatic Valves

SMC SMC

VX210HL

Description

VX210HL ; NC VALVE

Poppet Solenoid Valve; 6 MM Tubing OD; 2 Port | 2 Way; 2 Position; 230/50-60 VAC; Pneumatic; Solenoid | Spring Return; 145 PSI; 14 To 140 Deg F; Buna-N Seal; Plastic

Part #

VX210HL

BDI #
18197275

Details

12460.0 HUF 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Ft 12,460 / each BDIExpress
QTY

Inventory

Total: Request a quotation

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Poppet | Solenoid
Port Type
6 MM Tubing OD
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
230/50-60 VAC
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
0 To 145 PSI
Operating Temperature Range
14 To 140 Deg F
Seal Type
Buna-N
Body Material
Plastic
Inch - Metric
Metric
Other Features
0.23 Cv Factor | 2MM Orifice Size | Air Fluid | Normally Closed | Class B | DIN Terminal with Surge Voltage Suppressor | Size 1 | With Bracket
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.551
Long Description
Poppet Solenoid Valve; 6 MM Tubing OD; 2 Port | 2 Way; 2 Position; 230/50-60 VAC; Pneumatic; Solenoid | Spring Return; 145 PSI; 14 To 140 Deg F; Buna-N Seal; Plastic
Overall Height
3.606 Inch | 91.6 Millimeter
Overall Width
2.047 Inch | 52 Millimeter
Overall Length
3.504 Inch | 89 Millimeter
