VX232PZ1AB https://www.bdiexpress.com/medias/INDSMCVALVEX-VX2-GS-VX232PBC-300x300.jpg?context=bWFzdGVyfHJvb3R8NzIzOHxpbWFnZS9qcGVnfGFERXlMMmd3TWk4eE1Ea3hNREE0TmpNNU56azRNaTlKVGtSVFRVTldRVXhXUlZoZlZsZ3lYMGRUWDFaWU1qTXlVRUpEWHpNd01IZ3pNREF1YW5CbnxlODEyYmE4YWM4NmMwMjIzNzlkMDUwOGM4ZWFlOWE5NGQ1ODVmZmIzZDMwYjY4NDlhNzg3N2VlZDQ4MWZmZDY0
26892552 Hydraulic and Pneumatic Valves

SMC SMC

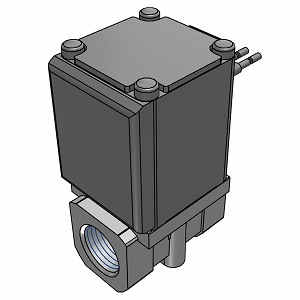

VX232PZ1AB

Description

VX232PZ1AB 2 PORT VALVE (SMARTCATALOG)

Poppet Solenoid Valve; 1/2" NPT; 2 Port | 2 Way; 2 Position; 48/50-60 VAC; Hydraulic; Solenoid | Spring Return; 15 PSI; 34 To 140 Deg F; Buna-N Seal; Stainless Steel

Part #

VX232PZ1AB

BDI #
26892552

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Request a quotation

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / gram
630
Product Group - BDI
F02234
Valve Type
Poppet | Solenoid
Port Type
1/2" NPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
48/50-60 VAC
Media
Hydraulic
Maximum Pressure
15 PSI
Operating Pressure Range
0 To 15 PSI
Operating Temperature Range
34 To 140 Deg F
Seal Type
Buna-N
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
2.21 Cv Factor | 10MM Orifice Size | Water Fluid | Normally Closed | Class B | Grommet with Surge Voltage Suppressor | Size 3
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.20
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
1.389
Long Description
Poppet Solenoid Valve; 1/2" NPT; 2 Port | 2 Way; 2 Position; 48/50-60 VAC; Hydraulic; Solenoid | Spring Return; 15 PSI; 34 To 140 Deg F; Buna-N Seal; Stainless Steel
Overall Width
1.575 Inch | 40 Millimeter
Overall Length
2.343 Inch | 59.5 Millimeter
Overall Height
3.366 Inch | 85.5 Millimeter
