VXB215AHB https://www.bdiexpress.com/medias/MFRSMCVALVEX-25802945-300x300.jpg?context=bWFzdGVyfHJvb3R8MTA5ODN8aW1hZ2UvanBlZ3xhREkwTDJoaE5pOHhNRGt3T1RJME1EWXlNekV6TkM5TlJsSlRUVU5XUVV4V1JWaGZNalU0TURJNU5EVmZNekF3ZURNd01DNXFjR2N8ZGQwZWZlMWQyNmMwOWRjNzI5OGMyNTcwZTNkZmY3NGVhOTE3NGVlYWZjNjUzMmMyOTQ4ZDU4N2E3MDQwMDFjYg
25802945 Hydraulic and Pneumatic Valves

SMC SMC

VXB215AHB

Description

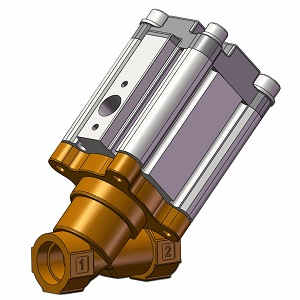

VXB215AHB ; ANGLE SEAT VALVE, AIR OPERATED

Flow Control Valve; 3/8" NPT; 2 Port | 2 Way; 2 Position; Hydraulic; Air Pilot | Spring Return; 232 PSI; 32 To 360 Deg F; Bronze

Part #

VXB215AHB

BDI #
25802945

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Request a quotation

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Flow Control
Port Type
3/8" NPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Air Pilot | Spring Return
Voltage
Not Applicable
Media
Hydraulic
Maximum Pressure
232 PSI
Operating Pressure Range
0 To 232 PSI
Operating Temperature Range
32 To 360 Deg F
Body Material
Bronze
Inch - Metric
Inch
Other Features
3.5 Cv Factor | 11MM Orifice Size | Steam Fluid | Normally Closed | High Pressure Type | 0 Degree Rotation Angle | Without Insulated Adapter
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.40
Noun
Valve
Keyword String
Flow Control
Manufacturer URL
https://www.smcworld.com
Weight / LBS
1.257
Long Description
Flow Control Valve; 3/8" NPT; 2 Port | 2 Way; 2 Position; Hydraulic; Air Pilot | Spring Return; 232 PSI; 32 To 360 Deg F; Bronze
Overall Width
1.772 Inch | 45 Millimeter
Overall Length
3.929 Inch | 99.8 Millimeter
Overall Height
3.929 Inch | 99.8 Millimeter
