QJ 214 N2PHAS/C2L https://www.bdiexpress.com/medias/INDXXXBRGXXX-ACB1-OPEN-PEEK-SPLIT-IN-300x300.jpg?context=bWFzdGVyfHJvb3R8OTQ1OXxpbWFnZS9qcGVnfGFESmpMMmczTVM4eE1EYzNNREF4TnpBMU9EZzBOaTlKVGtSWVdGaENVa2RZV0ZoZlFVTkNNVjlQVUVWT1gxQkZSVXRmVTFCTVNWUmZTVTVmTXpBd2VETXdNQzVxY0djfGJlZGY4NTdmMjZiNjU2MzljZGE0NGZkMWIyZWZhYThjMjViMTZhMWM1NGFkNWVkYzgzNjc3Njk1ODg2NmQ4ZGY

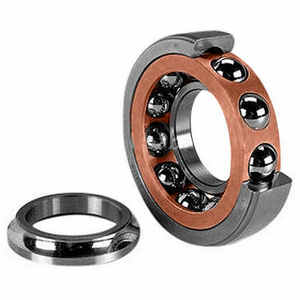

1423566 Angular Contact Ball Bearings

SKF SKF

QJ 214 N2PHAS/C2L

Description

QJ 214 N2PHAS/C2L

Angular Contact Ball Bearing; 70MM Bore; 125MM Outside Diameter; 24MM Width; Open; No Flush Ground; Single Row of Balls; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C2-Lower Half of C2 Range Internal Clearance; PEEK Cage; 35 Degree | 4 Point; 1 (Single)

Part #

QJ 214 N2PHAS/C2L

BDI #
1423566

Details

13930.0 RSD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price RSD 13,930.00 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Angular Contact Ball Bearings
Brand
SKF
Manufacturer Name
SKF
Minimum Buy Quantity
N/A
UNSPSC
31171531
Weight / Kilogram
1.22
EAN
7316572301333
Product Group - BDI
B00308
Enclosure
Open
Flush Ground
No
Rolling Element
Ball Bearing
Number of Rows of Balls
Single Row
Precision Class
ABEC 1 | ISO P0
Maximum Capacity / Filling Slot
No
Snap Ring
No
Cage Material
PEEK
Contact Angle
35 Degree | 4 Point
Internal Clearance
C2-Lower Half of C2 Range
Number of Bearings
1 (Single)
Inch - Metric
Metric
Other Features
Split Inner Race | Glass Fibre Reinforced Cage | With Lubrication Grooves In Guiding Surface | Outer Ring Centred | Two Locating Slots
Category - BDI
Angular Contact Ball Bearing
Harmonized Tariff Code
8482.10.50.28
Noun
Bearing
Keyword String
Angular Contact
Manufacturer URL
https://www.skf.com
Weight / LBS
2.86601
Long Description
Angular Contact Ball Bearing; 70MM Bore; 125MM Outside Diameter; 24MM Width; Open; No Flush Ground; Single Row of Balls; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C2-Lower Half of C2 Range Internal Clearance; PEEK Cage; 35 Degree | 4 Point; 1 (Single)
Outside Diameter
4.921 Inch | 125 Millimeter
Width
0.945 Inch | 24 Millimeter
Bore
2.756 Inch | 70 Millimeter
