12BGR10HTDUELP2 https://www.bdiexpress.com/medias/MFRNSKBRGXXX-BGR-PACB1P-O-PH-CB-1I1O-300x300.jpg?context=bWFzdGVyfHJvb3R8MTg4ODV8aW1hZ2UvanBlZ3xhR0kzTDJoa05TOHhNRGcyTURJMU1ETTJOVGs0TWk5TlJsSk9VMHRDVWtkWVdGaGZRa2RTWDFCQlEwSXhVRjlQWDFCSVgwTkNYekZKTVU5Zk16QXdlRE13TUM1cWNHY3w4NWQyNzgwMGY0NjgwYjI0MTUxOWIzZmVlNjI5ZjQzNGIyODY2ZTcyMjJhYTQ1ZWY2YmNlZjhmMTc3MDlkYzEw
24666560 Precision Ball Bearings

NSK NSK

12BGR10HTDUELP2

Description

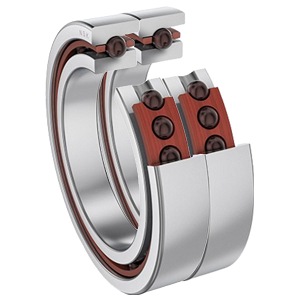

12BGR10HTDUELP2 ANGULAR CONTACT BALL BRG ; 12MM BOREX28MM ODX8MM W

Precision Ball Bearing; 12MM Bore; 28MM Outside Diameter; 16MM Width; Open Enclosure; ABEC 9 | ISO P2 Precision; Ceramic Ball Material; 2 (1 Pair) Bearing; 15 Degree Contact Angle; Phenolic Cage Material

Part #

12BGR10HTDUELP2

BDI #
24666560

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Precision Ball Bearings
Brand
NSK
Manufacturer Name
NSK
Minimum Buy Quantity
N/A
UNSPSC
31171531
Weight / Kilogram
0.02
EAN
0029176625992
Product Group - BDI
B04270
Enclosure
Open
Precision Class
ABEC 9 | ISO P2
Material - Ball
Ceramic
Number of Bearings
2 (1 Pair)
Contact Angle
15 Degree
Preload
Extra Light
Raceway Style
1 Rib Inner Ring and Outer Ring
Cage Material
Phenolic
Rolling Element
Ball Bearing
Mounting Arrangement
Duplex-Universal
Flush Ground
Yes
Inch - Metric
Metric
Other Features
Single Row | Angular Contact | Ultra High Precision | Corrosion Resistant Ball
Category - BDI
Precision Ball Bearings
Harmonized Tariff Code
8482.10.50.28
Noun
Bearing
Keyword String
Ball Angular Contact
Manufacturer URL
https://www.nskamericas.com
Manufacturer Item Number
12BGR10HTDUELP2
Weight / LBS
0.079
Long Description
Precision Ball Bearing; 12MM Bore; 28MM Outside Diameter; 16MM Width; Open Enclosure; ABEC 9 | ISO P2 Precision; Ceramic Ball Material; 2 (1 Pair) Bearing; 15 Degree Contact Angle; Phenolic Cage Material
Outside Diameter
1.102 Inch | 28 Millimeter
Bore
0.472 Inch | 12 Millimeter
Width
0.63 Inch | 16 Millimeter
