UC314HT2D1 https://www.bdiexpress.com/medias/INDNTNINSERT-BAL-UC-SS-S-300x300.jpg?context=bWFzdGVyfHJvb3R8MjExNjV8aW1hZ2UvanBlZ3xhR0kxTDJnMk15OHhNRFV5TURBd05ETTJNakkzTUM5SlRrUk9WRTVKVGxORlVsUmZRa0ZNWDFWRFgxTlRYMU5mTXpBd2VETXdNQzVxY0djfGVjYzg5NzU3ZTM3OWI4MGIyZGJmYThmMWQ2NWVlMTdmZjViMzNiOGMxMDdjNWMyYTQ0MTBkOGM5OGJiN2YwMDg

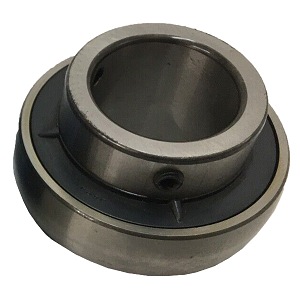

26646756 Insert Bearings Spherical OD

NTN NTN

UC314HT2D1

Description

UC314HT2D1 INSERT BEARING (SMARTCATALOG)

Insert Bearing; 70MM Bore; 78MM Length Thru Bore; Wide Inner Ring; 41MM Outer Race Width; Spherical; 150MM Outside Diameter; Relubricatable; Contact Seal; Set Screw Mounting Method; No Snap Ring; Ball Bearing Rolling Element

Part #

UC314HT2D1

BDI #
26646756

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Insert Bearings Spherical OD
Brand
NTN
Manufacturer Name
NTN
Minimum Buy Quantity
1
Weight / Kilogram
0
EAN
4547359233643
Product Group - BDI
B04270
Inner Race Profile
Wide Inner Ring
Outer Race Profile
Spherical
Relubricatable
Yes
Seal Type
Single Lip Contact
Mounting Method
Set Screw
Rolling Element
Ball Bearing
Snap Ring
No
Inch - Metric
Metric
Other Features
Single Row | Heavy Duty | Steel Cage | Heat Resistant
Category - BDI
Insert Bearings
Harmonized Tariff Code
8483.20.40.40
Noun
Bearing
Keyword String
Insert
Manufacturer URL
https://www.ntnglobal.com
Weight / LBS
8.598
Long Description
Insert Bearing; 70MM Bore; 78MM Length Thru Bore; Wide Inner Ring; 41MM Outer Race Width; Spherical; 150MM Outside Diameter; Relubricatable; Contact Seal; Set Screw Mounting Method; No Snap Ring; Ball Bearing Rolling Element
Outer Race Width
1.614 Inch | 41 Millimeter
Outside Diameter
5.906 Inch | 150 Millimeter
Length Thru Bore
3.071 Inch | 78 Millimeter
Bore
2.756 Inch | 70 Millimeter
