NSTU-SCM-203-NL https://www.bdiexpress.com/medias/INDDODTUXXXX-UO-NSTUSCM-CI-NL-300x300.jpg?context=bWFzdGVyfHJvb3R8MTkyNjN8aW1hZ2UvanBlZ3xhREprTDJnd1l5OHhNRFkwT1RFeU5ETXdOamszTkM5SlRrUkVUMFJVVlZoWVdGaGZWVTlmVGxOVVZWTkRUVjlEU1Y5T1RGOHpNREI0TXpBd0xtcHdad3w3YTNmMDc0MWE2MGY1OWQzYWEyMjJkYmRlMWE2NWVkNWU1OTQ5NDM4NzIzOTE4ODRlYTdmMjdlZWY3NWY5MmQ3

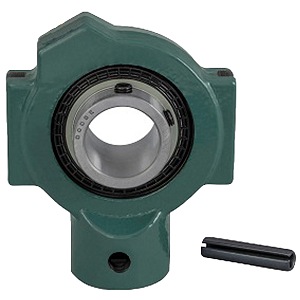

22270229 Take Up Unit Bearings

DODGE DODGE

NSTU-SCM-203-NL

Description

NSTU-SCM-203-NL TAKEUP BALL BRG UNIT ; NON RETURNABLE

Take Up Bearing Only; 2-3/16" Bore; 5/16" Slot Width; 4.917" Slot to Slot Distance; Ball Bearing; Unit Only; Set Screw Mount; NS415 Take Up Frame; INS-SCM-203-NL Insert; Cast Iron Housing Material

Part #

NSTU-SCM-203-NL

BDI #
22270229

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Take Up Unit Bearings
Brand
DODGE
Manufacturer Name
RBC BEARINGS
Minimum Buy Quantity
N/A
UNSPSC
31171500
Weight / Kilogram
3.63
EAN
0782477497520
Product Group - BDI
M06110
Component Description
Take Up Bearing Only
Rolling Element
Ball Bearing
Housing Style
Unit Only
Mounting Method
Set Screw
Compatible Take Up Frame
NS415
Insert Part Number
INS-SCM-203-NL
Housing Material
Cast Iron
Other Features
Single Row | Medium Duty | Wide Inner Ring | Narrow Slot | No Lube | 4.947" Maximum Slot to Slot Distance
Inch - Metric
Inch
Category - BDI
Take Up Units
Harmonized Tariff Code
8483.20.40.40
Noun
Bearing
Keyword String
Take Up
Manufacturer URL
https://dodgeindustrial.com
Manufacturer Internal Number
140825
Weight / LBS
8.01
Long Description
Take Up Bearing Only; 2-3/16" Bore; 5/16" Slot Width; 4.917" Slot to Slot Distance; Ball Bearing; Unit Only; Set Screw Mount; NS415 Take Up Frame; INS-SCM-203-NL Insert; Cast Iron Housing Material
Slot Width
0.313 Inch | 7.95 Millimeter
Bore
2.188 Inch | 55.575 Millimeter
Slot to Slot Distance
4.917 Inch | 124.89 Millimeter
