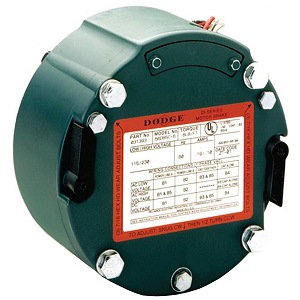

56DBSC-V-10-MA-104/208 VAC 60HZ https://www.bdiexpress.com/medias/INDBALBRAKEX-EL-D-CFACE-300x300.jpg?context=bWFzdGVyfHJvb3R8MjgxNTd8aW1hZ2UvanBlZ3xhR1poTDJoa01TOHhNRFkyT1RrM016STNORFkxTkM5SlRrUkNRVXhDVWtGTFJWaGZSVXhmUkY5RFJrRkRSVjh6TURCNE16QXdMbXB3Wnd8ZDQ3ZGFmM2ViYTM1YjllMTUyZjc5ZWMxODM1MmMwZTgwMWJjY2QxMjNlMTA1NDllMGQwZDViMDQxNzg3YzIyNw
22273279 Electric Clutches and Brakes

BALDOR-RELIANCE BALDOR-RELIANCE

56DBSC-V-10-MA-104/208 VAC 60HZ

Description

56DBSC-V-10-MA-104/208 VAC 60HZ BRAKE ; MTO

Electrical Braking System; Straight | Finished; 5/8" Bore; Hollow Bore Input; Not Applicable Output; C-Face | Shaft Mount; 104/208VAC Voltage; Bidirectional Rotation; Static Torque 10Lb-ft

Part #

56DBSC-V-10-MA-104/208 VAC 60HZ

BDI #
22273279

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Electric Clutches and Brakes
Brand
BALDOR-RELIANCE
Manufacturer Name
ABB GROUP
Minimum Buy Quantity
N/A
UNSPSC
26111500
Weight / Kilogram
5.351
EAN
0782475759682
Product Group - BDI
C02104
Product Name
Brake
Activation
Electrical
Bore Profile
Straight | Finished
Input Type
Hollow Bore
Output Type
Not Applicable
Mounting Method
C-Face | Shaft
Voltage Rating
104/208VAC
Direction of Rotation
Bidirectional
Number of Stop Collars
0
Torque
Static Torque 10Lb-ft
Product Type
Friction Disc | Wave Spring
Motion Type
Stopping | Holding
Actuation/Return
Coil
Product Series
D
Housing Style
Cylindrical
Shaft-Thru/End
End
Mounting Frame Profile
NEMA
Mounting Frame Size
56C
Enclosure
DP
Power Off Status
Engagement
Resistance Ohm
290Ohm
Frequency Hz
60
Phase
Single Phase
Number of Friction Discs
1
Lead Wire Position
External
Inch - Metric
Inch
Other Features
Splined Hub | Manually Wear Adjusted | Rugged | Class B Insulation
Category - BDI
Clutches and Brakes
Harmonized Tariff Code
8505.20.00.00
Noun
Braking System
Keyword String
Electrical
Manufacturer URL
https://www.baldor.com
Weight / LBS
11.8
Long Description
Electrical Braking System; Straight | Finished; 5/8" Bore; Hollow Bore Input; Not Applicable Output; C-Face | Shaft Mount; 104/208VAC Voltage; Bidirectional Rotation; Static Torque 10Lb-ft
Bore
0.625 Inch | 15.875 Millimeter
