DMCBX-50-90 https://www.bdiexpress.com/medias/INDDODBRAKEX-EL-DMCBX-DBLCFACE-300x300.jpg?context=bWFzdGVyfHJvb3R8OTkzNnxpbWFnZS9qcGVnfGFEa3dMMmhqTXk4eE1EYzJPRE0yTWpnMk5EWTNNQzlKVGtSRVQwUkNVa0ZMUlZoZlJVeGZSRTFEUWxoZlJFSk1RMFpCUTBWZk16QXdlRE13TUM1cWNHY3xkYzc0ZmE4YjRhZTExZTRhOTI5NWEyN2UzMTkwMjgxOTg4MWE2MzJmNzE2NTEyYmFjNDc5YTY0YmJhNmY5MmRk
241556 Electric Clutches and Brakes

BALDOR-RELIANCE BALDOR-RELIANCE

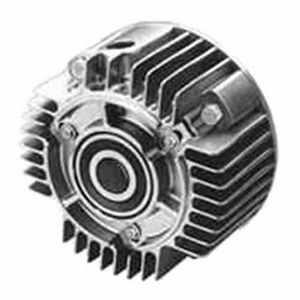

DMCBX-50-90

Description

DMCBX-50 BK NO SHFT 90V ; POR

Brake; Electrical Activation; Straight | Finished Bore; 5/8" Bore; Hollow Bore Input; Double C-Face | Shaft Mount; 90VDC Voltage; Bidirectional Rotation; Static Torque 22Lb-ft

Part #

DMCBX-50-90

BDI #
241556

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Electric Clutches and Brakes
Brand
BALDOR-RELIANCE
Manufacturer Name
ABB GROUP
Minimum Buy Quantity
N/A
UNSPSC
26112105
Weight / Kilogram
3.107
EAN
0782475513512
Product Group - BDI
C02104
Product Name
Brake
Activation
Electrical
Bore Profile
Straight | Finished
Input Type
Hollow Bore
Output Type
Not Applicable
Mounting Method
Double C-Face | Shaft
Voltage Rating
90VDC
Direction of Rotation
Bidirectional
Number of Stop Collars
0
Torque
Static Torque 22Lb-ft
Product Type
Friction Facing
Actuation/Return
Armature
Product Series
DMCBX
Housing Style
Cylindrical
Shaft-Thru/End
End
Mounting Frame Profile
NEMA
Mounting Frame Size
56C
Power Off Status
Disengagement
Resistance Ohm
460Ohm
Number of Friction Discs
0
Inch - Metric
Inch
Other Features
Pre-Lubricated | One-Piece | Burnished
Category - BDI
Clutches and Brakes
Harmonized Tariff Code
8505.20.00.00
Noun
Braking System
Keyword String
Electrical
Manufacturer URL
http://www.baldor.com
Manufacturer Item Number
DMCBX-50-90 BRK NO SHFT
Manufacturer Internal Number
028125
Weight / LBS
6.1
Long Description
Brake; Electrical Activation; Straight | Finished Bore; 5/8" Bore; Hollow Bore Input; Double C-Face | Shaft Mount; 90VDC Voltage; Bidirectional Rotation; Static Torque 22Lb-ft
Bore
0.625 Inch | 15.875 Millimeter
