835195 https://www.bdiexpress.com/medias/INDHORCLUTCH-PNEU-TCC-SHFT-300x300.jpg?context=bWFzdGVyfHJvb3R8ODQwMnxpbWFnZS9qcGVnfGFETXlMMmczTmk4eE1EYzJPREU0TWpJME56UTFOQzlKVGtSSVQxSkRURlZVUTBoZlVFNUZWVjlVUTBOZlUwaEdWRjh6TURCNE16QXdMbXB3Wnd8MTU2YWIxODZlYjkwNjAxMTk3NTZmOGVhYmI0MDBjMjFkODc4NmViNWM0ZmM0N2ZhOGY4NDI5NjI4MDJjY2JiZA
456159 Pneumatic Clutches and Brakes

NEXEN NEXEN

835195

Description

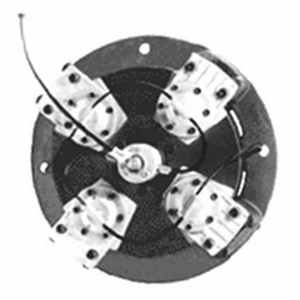

835195 ; TCC07-3 ROTOR HSG 25MM BORE

Clutch; Pneumatic Activation; Straight | Finished Bore; 25MM Bore; Hollow Bore Input; Shaft Mount; 101.549MM Pilot Diameter; Static Torque STD-483Lb-in

Part #

835195

BDI #
456159

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Pneumatic Clutches and Brakes
Brand
NEXEN
Manufacturer Name
NEXEN GROUP INC WWW.NEXENGROUP.COM
Minimum Buy Quantity
N/A
Weight / Kilogram
6.81
EAN
0662284254809
Product Group - BDI
C02104
Product Name
Clutch
Activation
Pneumatic
Bore Profile
Straight | Finished
Input Type
Hollow Bore
Output Type
Not Applicable
Mounting Method
Shaft
Torque
Static Torque STD-483Lb-in
Product Type
Friction Facing | Tension Control
Actuation/Return
Air | Spring
Product Series
TCC
Shaft-Thru/End
End
Drive Arrangement
Pilot Mount
Maximum RPM
1800
Pressure
1 to 85psi
Thermal Capacity
1.6HP
Application
Handle Paper | Foil | Film | Rubber | Plastics and Fabrics
Inch - Metric
Metric
Other Features
Air Cooled | Standard Coefficient Clutch Facing | Black Oxide Housing-Rotor Finish | Bare Cast Aluminum Caliper Finish | Open Design
Category - BDI
Clutches and Brakes
Harmonized Tariff Code
8483.60.40.40
Noun
Clutch
Keyword String
Pneumatic
Manufacturer URL
http://www.nexengroup.com
Manufacturer Item Number
835195
Weight / LBS
15
Long Description
Clutch; Pneumatic Activation; Straight | Finished Bore; 25MM Bore; Hollow Bore Input; Shaft Mount; 101.549MM Pilot Diameter; Static Torque STD-483Lb-in
Bore
0.984 Inch | 25 Millimeter
Pilot Diameter
3.998 Inch | 101.549 Millimeter
Port Size
0.156 Inch | 3.962 Millimeter
