53-SY5A40-L3 https://www.bdiexpress.com/medias/MFRSMCVALVEX-25454230-300x300.jpg?context=bWFzdGVyfHJvb3R8MTAxNDN8aW1hZ2UvanBlZ3xhRGMzTDJoalpDOHhNRGswTURjNU56RTFOelF3Tmk5TlJsSlRUVU5XUVV4V1JWaGZNalUwTlRReU16QmZNekF3ZURNd01DNXFjR2N8MDA1NDk4NWE2YjAxMjY5NDg5NmY3M2U1MzUyYzhmODkxNWJmNGMwN2I4NDI5NjhjNTA2YjY5ZWZiNTY3ZjVkNg
25454230 Hydraulic and Pneumatic Valves

SMC SMC

53-SY5A40-L3

Description

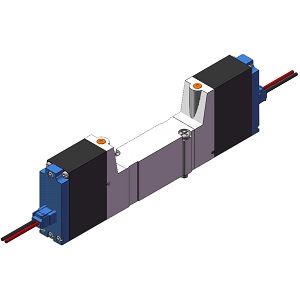

53-SY5A40-L3, VALVE, SOL, INTRISICALLY SAFE (SMARTCATALOG)

Solenoid Valve; Dual 3 Port | 3 Way; 4 Position; 12 VDC; Pneumatic; Dual Solenoid - Air Pilot | Air Pilot - Spring Return; 100 PSI; 14 To 122 Deg F; Rubber Seal; Zinc

Part #

53-SY5A40-L3

BDI #
25454230

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
Not Available
Number of Ports/Way
Dual 3 Port | 3 Way
Number of Positions
4 Position
Actuation
Dual Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
12 VDC
Media
Pneumatic
Maximum Pressure
100 PSI
Operating Pressure Range
30 To 100 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Zinc
Inch - Metric
Inch
Other Features
Air Fluid | Non Locking Type Manual Override | L Plug | UL/CSA Compliant
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Long Description
Solenoid Valve; Dual 3 Port | 3 Way; 4 Position; 12 VDC; Pneumatic; Dual Solenoid - Air Pilot | Air Pilot - Spring Return; 100 PSI; 14 To 122 Deg F; Rubber Seal; Zinc
Overall Length
6.047 Inch | 153.6 Millimeter
Overall Width
0.654 Inch | 16.6 Millimeter
Overall Height
1.594 Inch | 40.5 Millimeter
