8210G011DC48/DCD https://www.bdiexpress.com/medias/INDASVVALVEX-8210G011-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTMxNzJ8aW1hZ2UvanBlZ3xhR0UxTDJoaFppOHhNRGd3TkRZM016TXhORGcwTmk5SlRrUkJVMVpXUVV4V1JWaGZPREl4TUVjd01URmZRbEpUWHpNd01IZ3pNREF1YW5CbnwwNGMwNzkyYWM3MGM4NjZlZDIyZjI4Y2M1ODlkNGQ3MGUyNDg3ZWJmM2M2YjdiNmM1NTMxM2ZhZDg1YTE1NTY4
27260357 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8210G011DC48/DCD

Description

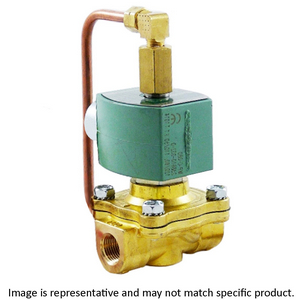

8210G011DC48/DCD SOLENOID VALVE, 3/8 X 5/8 2NO BRASS 11.6/F W (SMARTCATALOG)

Valve; 3/8" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 48 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; Air - Inert Gas 250 PSI/Light Oil - Water 200 PSI; 32 To 180 Deg F; Buna-N Seal; Brass

Part #

8210G011DC48/DCD

BDI #
27260357

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
3/8" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
48 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas 250 PSI | Light Oil - Water 200 PSI
Operating Pressure Range
Air - Inert Gas 5 To 250 PSI | Light Oil - Water 5 To 200 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
3 Cv Factor | 5/8" Orifice Size | Normally Open | Air - Inert Gas - Water - Light Oil Fluid | 18" Lead
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Valve; 3/8" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 48 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; Air - Inert Gas 250 PSI/Light Oil - Water 200 PSI; 32 To 180 Deg F; Buna-N Seal; Brass
Overall Length
3.505 Inch | 89.027 Millimeter
Overall Width
3.332 Inch | 84.633 Millimeter
Overall Height
5.42 Inch | 137.668 Millimeter
