8210G038DC240/DCD https://www.bdiexpress.com/medias/INDASVVALVEX-8210G030-SS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTU2NzF8aW1hZ2UvanBlZ3xhR1ZsTDJnNVpDOHhNRGd3TkRZM016ZzNNVGt3TWk5SlRrUkJVMVpXUVV4V1JWaGZPREl4TUVjd016QmZVMU5mTXpBd2VETXdNQzVxY0djfGJiNjFlZDExZDk1MTVjMjA4NzI3ODc0MzQ1MDQzZTE1ZDljNmMwZjRhNzUwYmVmYmVmMzg5YzRlOGY4MDYzNmU
27262188 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8210G038DC240/DCD

Description

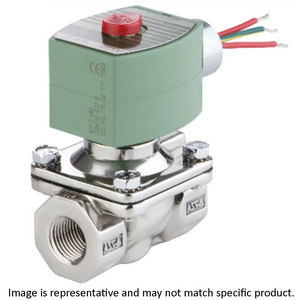

8210G038DC240/DCD SOLENOID VALVE, 3/4 X 5/8 2NO SS 11.6/F W (SMARTCATALOG)

Valve; 3/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 240 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; Air - Inert Gas -Water 125 PSI/Light Oil 80 PSI; 32 To 150 Deg F; Buna-N Seal; Stainless Steel

Part #

8210G038DC240/DCD

BDI #
27262188

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
3/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
240 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas - Water 125 PSI | Light Oil 80 PSI
Operating Pressure Range
Air - Inert Gas - Water 0 To 125 PSI | Light Oil 0 To 80 PSI
Operating Temperature Range
32 To 150 Deg F
Seal Type
Buna-N
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
3 Cv Factor | 5/8" Orifice Size | Normally Open | Air - Inert Gas - Water - Light Oil Fluid | 18" Lead
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
7.49
Long Description
Valve; 3/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 240 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; Air - Inert Gas -Water 125 PSI/Light Oil 80 PSI; 32 To 150 Deg F; Buna-N Seal; Stainless Steel
Overall Length
3.54 Inch | 89.916 Millimeter
Overall Width
2.37 Inch | 60.198 Millimeter
Overall Height
4.61 Inch | 117.094 Millimeter
