8210G088MBDC120/DCD https://www.bdiexpress.com/medias/INDASVVALVEX-8210G088-MB-300x300.jpg?context=bWFzdGVyfHJvb3R8Mjc3MjN8aW1hZ2UvanBlZ3xhR1V5TDJneU5TOHhNRFl3TlRFeU5UZzJNVFF3Tmk5SlRrUkJVMVpXUVV4V1JWaGZPREl4TUVjd09EaGZUVUpmTXpBd2VETXdNQzVxY0djfGE3MjBkZWQzNTNiNjg4YTVmYmM3YTYwMjkyMTlkYmI3ODQ3OWRjZjE1M2M2YWNmYjk0Zjg0NDliMmY5NjFiZWE
27261881 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8210G088MBDC120/DCD

Description

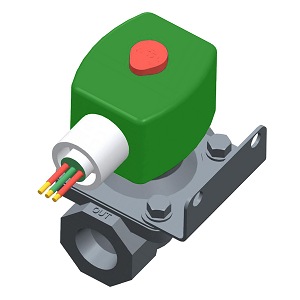

8210G088MBDC120/DCD SOLENOID VALVE, 3/4 X 5/8 2NC SS 11.6/F W (SMARTCATALOG)

Valve; 3/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 120 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; 40 PSI; 32 To 150 Deg F; Buna-N Seal; Stainless Steel

Part #

8210G088MBDC120/DCD

BDI #
27261881

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
3/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
120 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
40 PSI
Operating Pressure Range
0 To 40 PSI
Operating Temperature Range
32 To 150 Deg F
Seal Type
Buna-N
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
4.5 Cv Factor | 5/8" Orifice Size | Normally Closed | Air - Water Fluid | Mounting Bracket | 18" Lead
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
2.5
Long Description
Valve; 3/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 120 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; 40 PSI; 32 To 150 Deg F; Buna-N Seal; Stainless Steel
Overall Length
3.54 Inch | 89.916 Millimeter
Overall Width
2.86 Inch | 72.65 Millimeter
Overall Height
4.198 Inch | 106.629 Millimeter
