8215G030DC110/DCD https://www.bdiexpress.com/medias/INDASVVALVEX-8215G001-300x300.jpg?context=bWFzdGVyfHJvb3R8NTQ1Njd8aW1hZ2UvanBlZ3xhRFE0TDJneE9TOHhNRGd3TnpreE5EWXlOekV3TWk5SlRrUkJVMVpXUVV4V1JWaGZPREl4TlVjd01ERmZNekF3ZURNd01DNXFjR2N8ODljZDFkN2Y3OTAzMWVkNDA0MDM2Y2RkYThhNDUxMGM3YWUwZWY2Mjc5ZjJkMTQzMWVkZTBkNGI0YjJmZTA1ZA
27261279 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8215G030DC110/DCD

Description

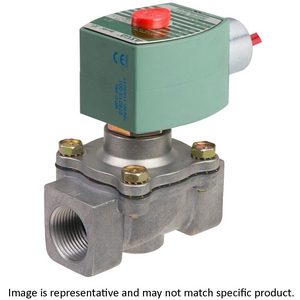

8215G030DC110/DCD SOLENOID VALVE, 3/4 X 3/4 2NC ALUM 11.6/F W (SMARTCATALOG)

Valve; 3/4" FNPT Port; 2 Port - 2 Way; 2 Position; Pneumatic; 110 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; 25 PSI; 32 To 104 Deg F; Buna-N Seal; Aluminum

Part #

8215G030DC110/DCD

BDI #
27261279

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
3/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
110 VDC
Media
Pneumatic
Maximum Pressure
25 PSI
Operating Pressure Range
0 To 25 PSI
Operating Temperature Range
32 To 104 Deg F
Seal Type
Buna-N
Body Material
Aluminum
Inch - Metric
Inch
Other Features
5.1 Cv Factor | 3/4" Orifice Size | Air - Fuel Gas Fluid | Normally Closed | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
1.8
Long Description
Valve; 3/4" FNPT Port; 2 Port - 2 Way; 2 Position; Pneumatic; 110 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; 25 PSI; 32 To 104 Deg F; Buna-N Seal; Aluminum
Overall Width
2.332 Inch | 59.233 Millimeter
Overall Length
3.795 Inch | 96.393 Millimeter
Overall Height
4.46 Inch | 113.284 Millimeter
