8220G409AC120/60D https://www.bdiexpress.com/medias/INDASVVALVEX-8220G401-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTU1NTh8aW1hZ2UvanBlZ3xhR1k1TDJnM01TOHhNRGd3TnpFeE1UTTROVEV4T0M5SlRrUkJVMVpXUVV4V1JWaGZPREl5TUVjME1ERmZRbEpUWHpNd01IZ3pNREF1YW5Cbnw5ZTk0MGU5ZjMwNmE5ZGEzYTYxNmRiMDM2MGVjMDkxOTE2NTE1NzE4M2FlY2M3YmY4Yzc3YTQwODA2NGExOThk
20290930 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8220G409AC120/60D

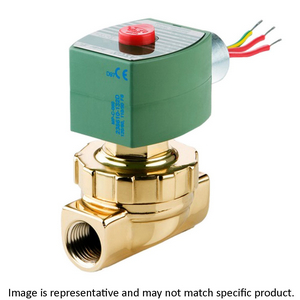

Description

8220G409AC120/60D VALVE ; 3/4" FNPT N.C. 2P-2W 120V/60 110V/50

Solenoid Valve; 3/4" FNPT Port; 2 Port | 2 Way; 2 Position; 120/60 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; Hot Water 150 PSI | Steam 125 PSI; Hot Water 32 To 210 Deg F | Steam 32 To 353 Deg F; EPDM Seal; Brass

Part #

8220G409AC120/60D

BDI #
20290930

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.045
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
3/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
120/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Hot Water 150 PSI | Steam 125 PSI
Operating Pressure Range
Hot Water 5 To 150 PSI | Steam 5 To 125 PSI
Operating Temperature Range
Hot Water 32 To 210 Deg F | Steam 32 To 353 Deg F
Seal Type
EPDM
Body Material
Brass
Inch - Metric
Inch
Other Features
8.8 Cv Factor | 3/4" Orifice Size | Hot Water - Steam Fluid | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.emerson.com
Weight / LBS
1.18
Long Description
Solenoid Valve; 3/4" FNPT Port; 2 Port | 2 Way; 2 Position; 120/60 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; Hot Water 150 PSI | Steam 125 PSI; Hot Water 32 To 210 Deg F | Steam 32 To 353 Deg F; EPDM Seal; Brass
Overall Length
3.575 Inch | 90.8 Millimeter
Overall Height
4.198 Inch | 106.629 Millimeter
Overall Width
2.819 Inch | 71.603 Millimeter
