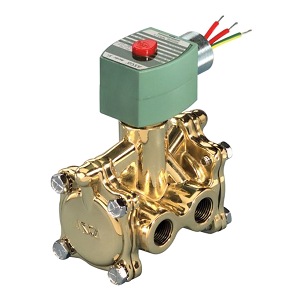

8316G056DC48/DC https://www.bdiexpress.com/medias/INDASVVALVEX-8316G064-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8MTkzMzV8aW1hZ2UvanBlZ3xhREV4TDJoaE5TOHhNRGM1TnpjMk1qRXhOelkyTWk5SlRrUkJVMVpXUVV4V1JWaGZPRE14Tmtjd05qUmZRbEpUWHpNd01IZ3pNREF1YW5CbnwxODg3MmI3YWZlZmY3ZTVkZTk4ZDVkNWZiMDFlNzgwZTkzMTU4Nzk4MmI0YmY0N2FkN2IxMjFlNTA1NWVlNjJi
Back to search results
20696110 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8316G056DC48/DC

Description

8316G056DC48/DC SOLENOID VALVE ; 3/8"X5/8" 3NO BRASS 10.6/FW

Valve; Solenoid; 3/8" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 48 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; 125 PSI; 32 To 120 Deg F; Buna-N Seal; Brass

Part #

316056G83

BDI #
20696110

Details

2198.28 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 2,198.28 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0.005
Product Group - BDI
F02352
Valve Type
Diaphragm | Solenoid
Port Type
3/8" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
48 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
125 PSI
Operating Pressure Range
10 To 125 PSI
Operating Temperature Range
32 To 120 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
2.5 Cv Factor | 5/8" Orifice Size | Normally Open | Ambient Temperature 0 To 40 Deg C
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Diaphragm Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
3.9
Long Description
Valve; Solenoid; 3/8" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 48 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; 125 PSI; 32 To 120 Deg F; Buna-N Seal; Brass
Overall Width
2.76 Inch | 70.104 Millimeter
Overall Height
5.082 Inch | 129.083 Millimeter
Overall Length
4.31 Inch | 109.474 Millimeter
