8344G072AC12/60D https://www.bdiexpress.com/medias/INDASVVALVEX-8344G000-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8MTUwNjV8aW1hZ2UvanBlZ3xhRGMwTDJnNU5DOHhNRGM1TnpjeE56VTROVGsxTUM5SlRrUkJVMVpXUVV4V1JWaGZPRE0wTkVjd01EQmZRbEpUWHpNd01IZ3pNREF1YW5CbnwzOWJiZjY5NmRkOTBkMDdiYjM4N2EyNWQ3OTg2NzUyNmNjY2IyYTMwMmVmOTQ1Y2U2MDQ2Yjg5NjNkZDhlODM3
27210407 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8344G072AC12/60D

Description

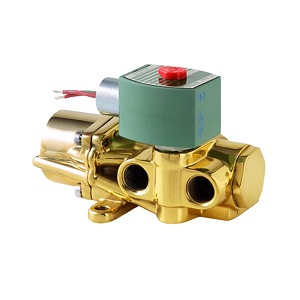

8344G072AC12/60D SOLENOID VALVE, 3/8 X 3/8 4 BRASS 10.1/F W (SMARTCATALOG)

Valve; Solenoid; 3/8" FNPT Port; 4 Port - 4 Way; 2 Position; Hydraulic - Pneumatic; 12/60 VAC; Solenoid - Air Pilot/Air Pilot Return; Air - Inert Gas 150 PSI/Light Oil - Water 125 PSI; 32 To 180 Deg F; Buna-N Seal; Brass

Part #

8344G072AC12/60D

BDI #
27210407

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Poppet | Solenoid
Port Type
3/8" FNPT
Number of Ports/Way
4 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot Return
Voltage
12/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas 150 PSI | Light Oil - Water 125 PSI
Operating Pressure Range
Air - Inert Gas 10 To 150 PSI | Light Oil 25 To 125 PSI | Water 10 To 125 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
1.4 - 2.2 Cv Factor | 3/8" Orifice Size | Air - Inert Gas - Water - Light Oil Fluid | NBR Disc
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
5.2
Long Description
Valve; Solenoid; 3/8" FNPT Port; 4 Port - 4 Way; 2 Position; Hydraulic - Pneumatic; 12/60 VAC; Solenoid - Air Pilot/Air Pilot Return; Air - Inert Gas 150 PSI/Light Oil - Water 125 PSI; 32 To 180 Deg F; Buna-N Seal; Brass
Overall Height
4.062 Inch | 103.175 Millimeter
Overall Length
6.06 Inch | 153.924 Millimeter
Overall Width
3.88 Inch | 98.552 Millimeter
