EE8262R109V24-120 https://www.bdiexpress.com/medias/INDASVVALVEX-8262R109-EE-V-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NDY5ODh8aW1hZ2UvanBlZ3xhRGRoTDJoak15OHhNRGd3TkRnM01UQXdOREU1TUM5SlRrUkJVMVpXUVV4V1JWaGZPREkyTWxJeE1EbGZSVVZmVmw5Q1VsTmZNekF3ZURNd01DNXFjR2N8OTYxYmU2ZjQ1MjMwZWE3NzRhYTdkY2VmYmRlODhjYjEzMGYyMjNlNDNkMjFjYzYzNzQ2OTg0YmJjZWMzODAwMw
27168924 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

EE8262R109V24-120

Description

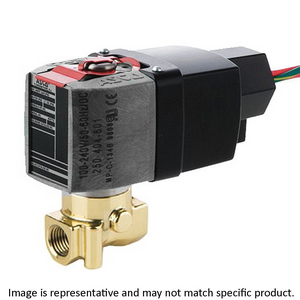

EE8262R109V24-120 SOLENOID VALVE, 1/4 X 3/32 2NC BRASS 1.5/H W (SMARTCATALOG)

Solenoid Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; 24 To 120 V; Hydraulic - Pneumatic; Solenoid/Spring Return; Air - Inert Gas 720 PSI/Water - Light Oil 410 PSI; 32 To 180 Deg F; Rubber Seal; Brass

Part #

EE8262R109V24-120

BDI #
27168924

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
24 To 120 V
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas 720 PSI | Water - Light Oil 410 PSI
Operating Pressure Range
Air - Inert Gas 0 To 720 PSI | Water - Light Oil 0 To 410 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Rubber
Body Material
Brass
Inch - Metric
Inch
Other Features
0.21 Cv Factor | 3/32" Orifice Size | Air - Inert Gas - Light Oil - Water Fluid | In/Out Position | Class I | Division 2 General Purpose
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Solenoid Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; 24 To 120 V; Hydraulic - Pneumatic; Solenoid/Spring Return; Air - Inert Gas 720 PSI/Water - Light Oil 410 PSI; 32 To 180 Deg F; Rubber Seal; Brass
