EE8262R15224-120 https://www.bdiexpress.com/medias/INDASVVALVEX-8262R152-EE-SS-300x300.jpg?context=bWFzdGVyfHJvb3R8NDA3MDh8aW1hZ2UvanBlZ3xhR1kzTDJoak5DOHhNRGd3TkRnM01qUXhNekl4TkM5SlRrUkJVMVpXUVV4V1JWaGZPREkyTWxJeE5USmZSVVZmVTFOZk16QXdlRE13TUM1cWNHY3w0NzQzYzZiMzQ4ZmFiMDZiMWQwNWNjMTNjY2RkYmQxNWMzNjYxNWE2OWU3MzFlOTEwZDJmMTNkOGE2ZWI3ZTMw
27175561 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

EE8262R15224-120

Description

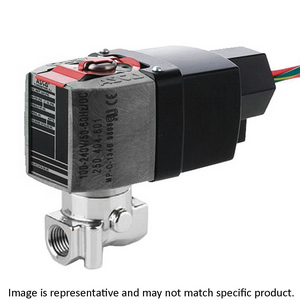

EE8262R15224-120 SOLENOID VALVE, 1/4 X 9/32 2NO SS 1.5/H W (SMARTCATALOG)

Solenoid Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; 24 To 120 V; Hydraulic - Pneumatic; Solenoid/Spring Return; 30 PSI; 32 To 180 Deg F; Buna-N Seal; Stainless Steel

Part #

EE8262R15224-120

BDI #
27175561

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
24 To 120 V
Media
Hydraulic | Pneumatic
Maximum Pressure
30 PSI
Operating Pressure Range
0 To 30 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Buna-N
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
0.96 Cv Factor | 9/32" Orifice Size | Air - Inert Gas - Light Oil - Water Fluid | In/Out Position | Class I | Division 2 General Purpose
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Solenoid Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; 24 To 120 V; Hydraulic - Pneumatic; Solenoid/Spring Return; 30 PSI; 32 To 180 Deg F; Buna-N Seal; Stainless Steel
