EE8262R185NH12-24/DC https://www.bdiexpress.com/medias/INDASVVALVEX-8262R105-SS-300x300.jpg?context=bWFzdGVyfHJvb3R8NDY5MjB8aW1hZ2UvanBlZ3xhR0ZpTDJnMU1pOHhNRGd3TWpNNE1EazVOall6T0M5SlRrUkJVMVpXUVV4V1JWaGZPREkyTWxJeE1EVmZVMU5mTXpBd2VETXdNQzVxY0djfGM2NDQ5ZGZmNWIzZGEwM2E4ZWNhZDFlZjU1MTJlYjZjNTgwZWEyYzdkMWQxMjBmNzljNTM0ZjJlNmRmMDdkMmE
27175575 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

EE8262R185NH12-24/DC

Description

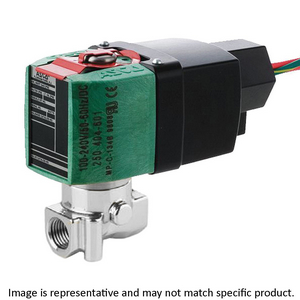

EE8262R185NH12-24/DC SOLENOID VALVE, 1/4 X 1/8 2NC SS 1.2/H W (SMARTCATALOG)

Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 12 To 24 VDC; Solenoid/Spring Return; Air - Inert Gas 540 PSI/Light oil 360 PSI/Water395 PSI; 32 To 180 Deg F; Buna-N Seal; Stainless Steel

Part #

EE8262R185NH12-24/DC

BDI #
27175575

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
12 To 24 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas 540 PSI | Light Oil 360 PSI | Water 395 PSI
Operating Pressure Range
Air - Inert Gas 0 To 540 PSI | Light Oil 0 To 360 PSI | Water 0 To 395 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Buna-N
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
0.35 Cv Factor | 1/8" Orifice Size | Ammonia Fluid | Class I | Division 2 General Purpose | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 12 To 24 VDC; Solenoid/Spring Return; Air - Inert Gas 540 PSI/Light oil 360 PSI/Water395 PSI; 32 To 180 Deg F; Buna-N Seal; Stainless Steel
Overall Length
3.993 Inch | 101.422 Millimeter
Overall Width
1.87 Inch | 47.5 Millimeter
Overall Height
3.092 Inch | 78.537 Millimeter
