EF8320G184PMSAC110/60D https://www.bdiexpress.com/medias/INDASVVALVEX-8320G174-EF-MS-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8MzkxMzB8aW1hZ2UvanBlZ3xhRGN5TDJoaU5DOHhNRGd3TXprd09EVTNOVEkyTWk5SlRrUkJVMVpXUVV4V1JWaGZPRE15TUVjeE56UmZSVVpmVFZOZlFsSlRYek13TUhnek1EQXVhbkJufGRkOWU2ZGZkZmQ3ZDk2YzE0MzExYTU1OTA4OTBlMWY3MWM1YTk2MDdkYmE2MmU4ZTE5YzJiOTUyYmNmNWFkNjQ
27081757 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

EF8320G184PMSAC110/60D

Description

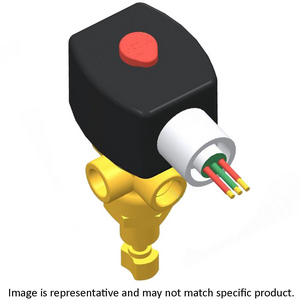

EF8320G184PMSAC110/60D SOLENOID VALVE, 1/4 X 3/32 3NC BRASS 10.1/F W (SMARTCATALOG)

Valve; 1/4" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 110/60 VAC; Solenoid/Spring Return; 150 PSI; 32 To 200 Deg F; Buna-N Seal; Brass

Part #

EF8320G184PMSAC110/60D

BDI #
27081757

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
110/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
150 PSI
Operating Pressure Range
0 To 150 PSI
Operating Temperature Range
32 To 200 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
0.12 Cv Factor | 3/32" Orifice Size | Normally Closed | Direct Acting | Ambient Temperature 0 To 52 Deg C | Screw Type Manual Operator | Explosion Proof
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
1.5
Long Description
Valve; 1/4" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 110/60 VAC; Solenoid/Spring Return; 150 PSI; 32 To 200 Deg F; Buna-N Seal; Brass
Overall Width
1.95 Inch | 49.53 Millimeter
Overall Height
5.188 Inch | 131.775 Millimeter
Overall Length
3.125 Inch | 79.375 Millimeter
