EFHC8551G409MSDC125/DCD https://www.bdiexpress.com/medias/INDASVVALVEX-8551G409-EFHC-MS-SS-300x300.jpg?context=bWFzdGVyfHJvb3R8NDM5MTh8aW1hZ2UvanBlZ3xhREF4TDJnNE55OHhNRGd3TlRBd05UYzBOakl3Tmk5SlRrUkJVMVpXUVV4V1JWaGZPRFUxTVVjME1EbGZSVVpJUTE5TlUxOVRVMTh6TURCNE16QXdMbXB3Wnd8NDQzYTc1ZmY4YWQ3MmEwODkwM2U3NzYwN2E3ZmQ5ZjQ0MDk3N2Y3NjVkOGVkZjAzMWE2MTRhNDc1MzBiNWM2Mw
27052775 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

EFHC8551G409MSDC125/DCD

Description

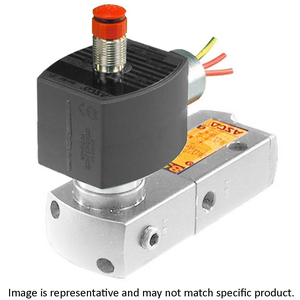

EFHC8551G409MSDC125/DCD SOLENOID VALVE, 1/4 X 1/4 4 SS 24.6/H W (SMARTCATALOG)

Solenoid Spool Valve; 1/4" FNPT Port; 5 Port - 4 Way; 2 Position; 125 VDC; Pneumatic; Solenoid - Air Pilot - Manual/Spring Return; 120 PSI; 32 To 120 Deg F; Buna-N Seal; Stainless Steel

Part #

EFHC8551G409MSDC125/DCD

BDI #
27052775

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Spool | Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot - Manual | Spring Return
Voltage
125 VDC
Media
Pneumatic
Maximum Pressure
120 PSI
Operating Pressure Range
30 To 120 PSI
Operating Temperature Range
32 To 120 Deg F
Seal Type
Buna-N
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
0.86 CV Factor | 1/4" Orifice Size | Air - Inert Gas Fluid | Explosion Proof | Class H | Battery Charging Coil | Screw Type Manual Operator | 18 Inch Lead
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Spool Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Solenoid Spool Valve; 1/4" FNPT Port; 5 Port - 4 Way; 2 Position; 125 VDC; Pneumatic; Solenoid - Air Pilot - Manual/Spring Return; 120 PSI; 32 To 120 Deg F; Buna-N Seal; Stainless Steel
