JB8262H138MBAC440/60D https://www.bdiexpress.com/medias/INDASVVALVEX-8262H138-JB-MB-SS-300x300.jpg?context=bWFzdGVyfHJvb3R8MzY3NTh8aW1hZ2UvanBlZ3xhRGhpTDJnNE5pOHhNRGd3TVRreU5EYzJOemMzTkM5SlRrUkJVMVpXUVV4V1JWaGZPREkyTWtneE16aGZTa0pmVFVKZlUxTmZNekF3ZURNd01DNXFjR2N8ZmQ3YzgyMWYzOTkxODUzMjg3ODU4MmE0MmRhZDU0NjcwODMxZTc3NmIyNDdmZDA3Zjk1ZjBhOTI4NGJiNGI0Yg
27197882 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

JB8262H138MBAC440/60D

Description

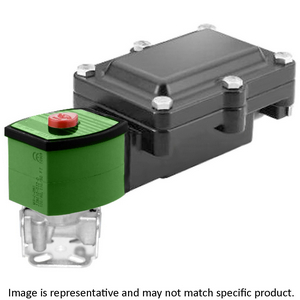

JB8262H138MBAC440/60D SOLENOID VALVE, 1/4 X 1/8 2NO SS 10.1/F W (SMARTCATALOG)

Solenoid Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; 440/60 VAC; Hydraulic - Pneumatic; Solenoid/Spring Return; Air - Inert Gas 160 PSI/Light Oil 125 PSI/Water 145 PSI; -13 To 180 Deg F; Buna-N Seal; Stainless Steel

Part #

JB8262H138MBAC440/60D

BDI #
27197882

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
440/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas 160 PSI | Light Oil 125 PSI | Water 145 PSI
Operating Pressure Range
Air - Inert Gas 0 To 160 PSI | Light Oil 0 To 125 PSI | Water 0 To 145 PSI
Operating Temperature Range
-13 To 180 Deg F
Seal Type
Buna-N
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
0.35 Cv Factor | 1/8" Orifice Size | Air - Light Oil - Water Fluid | Normally Open | General Service | Direct Acting | NBR Disc | Ambient Temperature -25 To 55 Deg C | Junction Box with Lead | Mounting Bracket | 18" Lead
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
1.3
Long Description
Solenoid Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; 440/60 VAC; Hydraulic - Pneumatic; Solenoid/Spring Return; Air - Inert Gas 160 PSI/Light Oil 125 PSI/Water 145 PSI; -13 To 180 Deg F; Buna-N Seal; Stainless Steel
Overall Height
3.12 Inch | 79.25 Millimeter
Overall Width
2.06 Inch | 52.324 Millimeter
