JSP8316G016VMBAC110/50 https://www.bdiexpress.com/medias/INDASVVALVEX-8316G064-JKF-MB-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8MTcwODd8aW1hZ2UvanBlZ3xhR1V4TDJnNVlpOHhNRGM1Tnpjd056VTVNVGN4TUM5SlRrUkJVMVpXUVV4V1JWaGZPRE14Tmtjd05qUmZTa3RHWDAxQ1gwSlNVMTh6TURCNE16QXdMbXB3Wnd8NTEwMWE4Njc4MTE5ODc5Mzc1ZDM0ZmI1NjE1Y2Y5OGI0NDA2MGYxZDA0NmFkZmQyZDc1NWRiNGRmZWE2MTY1YQ
27081382 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

JSP8316G016VMBAC110/50

Description

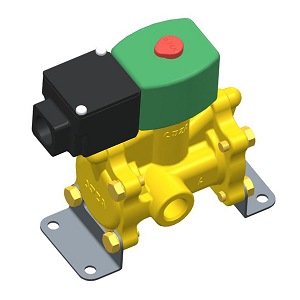

JSP8316G016VMBAC110/50 SOLENOID VALVE, 3/8 X 5/8 3NO BRASS 17.1/F W (SMARTCATALOG)

Solenoid Diaphragm Valve; 3/8" FNPT Port; 3 Port - 3 Way; 2 Position; 110/50 VAC; Hydraulic - Pneumatic; Solenoid - Air Pilot/Air Pilot - Spring Return; 250 PSI; 32 To 180 Deg F; Viton Seal; Brass

Part #

JSP8316G016VMBAC110/50

BDI #
27081382

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Diaphragm | Solenoid
Port Type
3/8" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
110/50 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
250 PSI
Operating Pressure Range
10 To 250 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Viton
Body Material
Brass
Inch - Metric
Inch
Other Features
2.5 Cv Factor | 5/8" Orifice Size | Normally Open | Ambient Temperature 0 To 52 Deg C | Junction Box | Class F | Intermediate Power | Spade Terminal | Mounting Bracket
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Diaphragm Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Solenoid Diaphragm Valve; 3/8" FNPT Port; 3 Port - 3 Way; 2 Position; 110/50 VAC; Hydraulic - Pneumatic; Solenoid - Air Pilot/Air Pilot - Spring Return; 250 PSI; 32 To 180 Deg F; Viton Seal; Brass
Overall Width
2.76 Inch | 70.104 Millimeter
