MFH-5/3B-D-3-S-C ; 151036 https://www.bdiexpress.com/medias/INDFESVALVEX-20209219-300x300.jpg?context=bWFzdGVyfHJvb3R8NjQ2N3xpbWFnZS9qcGVnfGFEbGtMMmcyT1M4eE1EazNNVE0xTlRnME1EVTBNaTlKVGtSR1JWTldRVXhXUlZoZk1qQXlNRGt5TVRsZk16QXdlRE13TUM1cWNHY3w4N2I2MjU2MTZiM2RmNzgwNzM3Y2I4NzVkZWFhY2NjMmVlZGU4ZjdkMTA2Yjg1MWNlYWRiN2E1OTExZjEwOGEy
20209219 Hydraulic and Pneumatic Valves

FESTO FESTO

MFH-5/3B-D-3-S-C ; 151036

Description

MFH-5/3B-D-3-S-C NR. 151036

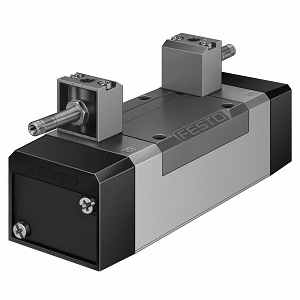

Solenoid Valve; 1/2" G; 5 Port - 4 Way; 3 Position; Pneumatic; Solenoid - Air Pilot - Manual - Spring/Solenoid - Air Pilot - Manual - Spring Return; 232 PSI; HNBR | Buna-N; Aluminum

Part #

MFH-5/3B-D-3-S-C NR. 151036

BDI #
20209219

Details

45873.0 RSD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price RSD 45,873.00 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
FESTO
Manufacturer Name
FESTO
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0.989
EAN
0000040141605
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/2" G
Number of Ports/Way
5 Port | 4 Way
Number of Positions
3 Position
Actuation
Solenoid - Air Pilot - Manual - Spring | Solenoid - Air Pilot - Manual - Spring Return
Voltage
Not Available
Media
Pneumatic
Maximum Pressure
232 PSI
Operating Pressure Range
-13 To 232 PSI
Operating Temperature Range
14 To 140 Deg F
Seal Type
HNBR | Buna-N
Body Material
Aluminum
Inch - Metric
Inch
Other Features
4100 L/Min Flow Rate | Reversible | Sub Base and Through Hole Mounting | D-3 Pneumatic Port | 14.5MM Nominal Size
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.festo.com
Manufacturer Internal Number
151036
Long Description
Solenoid Valve; 1/2" G; 5 Port - 4 Way; 3 Position; Pneumatic; Solenoid - Air Pilot - Manual - Spring/Solenoid - Air Pilot - Manual - Spring Return; 232 PSI; HNBR | Buna-N; Aluminum
Overall Length
3.437 Inch | 87.3 Millimeter
Overall Width
2.559 Inch | 65 Millimeter
Overall Height
7.244 Inch | 184 Millimeter
