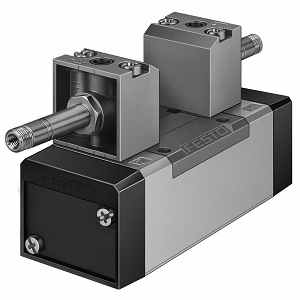

MFH-5/3G-D-1-C ; 150982 https://www.bdiexpress.com/medias/INDFESVALVEX-15060561-300x300.jpg?context=bWFzdGVyfHJvb3R8NzkzMXxpbWFnZS9qcGVnfGFESXhMMmd3Tnk4eE1EazNNVE0yT1RJME1qWTFOQzlKVGtSR1JWTldRVXhXUlZoZk1UVXdOakExTmpGZk16QXdlRE13TUM1cWNHY3w4OGE5YWE4MWYyMDcyZGExYTM2OTA4NjY3Njc3MzUwNWU0NzFkN2RkMWY2YTlkMmY4YmYwMGJiNzE0NjkwMTY0
15060561 Hydraulic and Pneumatic Valves

FESTO FESTO

MFH-5/3G-D-1-C ; 150982

Description

MFH-5/3G-D-1-C NR. 150982

Solenoid Valve; 1/4" G; 5 Port - 4 Way; 3 Position; Pneumatic; Solenoid - Air Pilot - Manual - Spring/Solenoid - Air Pilot - Manual - Spring Return; 145 PSI; HNBR | Buna-N; Aluminum

Part #

MFH-5/3G-D-1-C NR. 150982

BDI #
15060561

Details

27263.0 RSD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price RSD 27,263.00 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
FESTO
Manufacturer Name
FESTO
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" G
Number of Ports/Way
5 Port | 4 Way
Number of Positions
3 Position
Actuation
Solenoid - Air Pilot - Manual - Spring | Solenoid - Air Pilot - Manual - Spring Return
Voltage
Not Available
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
29 To 145 PSI
Operating Temperature Range
14 To 140 Deg F
Seal Type
HNBR | Buna-N
Body Material
Aluminum
Inch - Metric
Inch
Other Features
1200 L/Min Flow Rate | Non Reversible | Sub Base and Through Hole Mounting | D-1 Pneumatic Port | 8MM Nominal Size
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.festo.com
Manufacturer Internal Number
150982
Long Description
Solenoid Valve; 1/4" G; 5 Port - 4 Way; 3 Position; Pneumatic; Solenoid - Air Pilot - Manual - Spring/Solenoid - Air Pilot - Manual - Spring Return; 145 PSI; HNBR | Buna-N; Aluminum
Overall Length
3.433 Inch | 87.2 Millimeter
Overall Width
1.654 Inch | 42 Millimeter
Overall Height
4.795 Inch | 121.8 Millimeter
