OFST8220G031AC110/50 https://www.bdiexpress.com/medias/INDASVVALVEX-8220G031-OFSF-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8Mjk4ODR8aW1hZ2UvanBlZ3xhREk1TDJnNU15OHhNRFl3TkRNMk56UTBOakEwTmk5SlRrUkJVMVpXUVV4V1JWaGZPREl5TUVjd016RmZUMFpUUmw5Q1VsTmZNekF3ZURNd01DNXFjR2N8ZmY1YTdhYjVkZmZkNjdjYmE0NjgzOTEyODFjN2M1MGJmYWQ5NjczOGMxZDdmMzk3NmY1YWVhNGE5MzM1OWUyOA
27087073 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

OFST8220G031AC110/50

Description

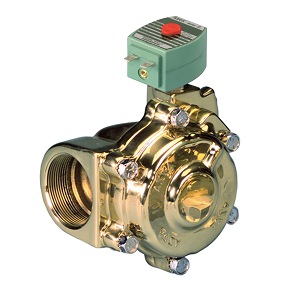

OFST8220G031AC110/50 SOLENOID VALVE, 2 X 1-3/ 2NC BRASS 10.1/H W (SMARTCATALOG)

Valve; 2" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 110/50 VAC; Solenoid - Air Pilot/Air Pilot - Spring Return; Hot Water 150 PSI/Steam 125 PSI; Hot Water 32 To 210 Deg F/Steam 32 To 353 Deg F; Teflon Seal; Brass

Part #

OFST8220G031AC110/50

BDI #
27087073

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
2" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
110/50 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Hot Water 150 PSI | Steam 125 PSI
Operating Pressure Range
Hot Water 5 To 150 PSI | Steam 5 To 125 PSI
Operating Temperature Range
Hot Water 32 To 210 Deg F | Steam 32 To 353 Deg F
Seal Type
Teflon
Body Material
Brass
Inch - Metric
Inch
Other Features
43 Cv Factor | 1-3/4" Orifice Size | Hot Water - Steam Fluid | Open Frame | Class H | High Temperature | Spade Terminal | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
9
Long Description
Valve; 2" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 110/50 VAC; Solenoid - Air Pilot/Air Pilot - Spring Return; Hot Water 150 PSI/Steam 125 PSI; Hot Water 32 To 210 Deg F/Steam 32 To 353 Deg F; Teflon Seal; Brass
Overall Width
4.724 Inch | 120 Millimeter
Overall Height
7.513 Inch | 190.83 Millimeter
Overall Length
5.463 Inch | 138.76 Millimeter
