OPSF8262H208AC24/60 https://www.bdiexpress.com/medias/INDASVVALVEX-8262H001-OFSF-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTExMDd8aW1hZ2UvanBlZ3xhRGN3TDJneE1DOHhNRGd3TWpJd05UYzFNek0zTkM5SlRrUkJVMVpXUVV4V1JWaGZPREkyTWtnd01ERmZUMFpUUmw5Q1VsTmZNekF3ZURNd01DNXFjR2N8OTRhN2FkYzliMTgzMDgyNTE3MjE3YTE1MjQzZDU1NGJiZjdjZDA0MTNlYTA1Mzg3N2FkOGYwOWQzY2Y5ZjZkNQ
20710560 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

OPSF8262H208AC24/60

Description

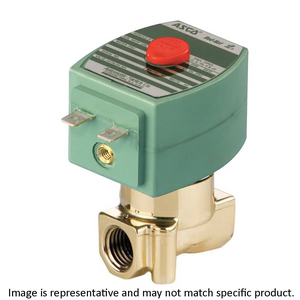

OPSF8262H208AC24/60 SOLENOID VALVE ; 1/4"X7/32" 2NC BRASS 10.1/FW

Solenoid Valve; 1/4" FNPT Port; 2 Port | 2 Way; 2 Position; 24/60 VAC; Hydraulic | Pneumatic; Solenoid | Spring Return; 100 PSI; -13 To 180 Deg F; Buna-N Seal; Brass

Part #

OPSF8262H208AC24/60

BDI #
20710560

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.005
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
24/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
100 PSI
Operating Pressure Range
0 To 100 PSI
Operating Temperature Range
-13 To 180 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
0.73 Cv Factor | 7/32" Orifice Size | Normally Closed | General Service | NBR Disc | Ambient Temperature -25 To 55 Deg C | Panel Mount | Class F | High Temperature | Spade Terminal
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.emerson.com
Long Description
Solenoid Valve; 1/4" FNPT Port; 2 Port | 2 Way; 2 Position; 24/60 VAC; Hydraulic | Pneumatic; Solenoid | Spring Return; 100 PSI; -13 To 180 Deg F; Buna-N Seal; Brass
Overall Length
2.68 Inch | 68.072 Millimeter
Overall Height
3.152 Inch | 80.051 Millimeter
Overall Width
1.95 Inch | 49.53 Millimeter
